ScotTruss Machines

Take your steel framing operation to a new dimension.

Why choose scottsdale?

HIGHLIGHTS

SPEEDIER PRODUCTION

Optimised drive and gearbox combination boost production output of rolled steel per hour.

SELF-ADJUSTING

Automatically adjusting stations save time setting roller pressure for different steel gauges.

Stronger finish

An end-bearing guillotine enables studs to sit flush for sturdier construction while saving on materials.

Safety first

All-over protective panels provide enclosed safety. Sliding top enables access as required.

Continuous assembly

Optimised fabrication sequencing ensures machine and team can work to max output.

Universal coil size

The 90mm (3.5”) machine uses a common coil for production flexibility and stock SKU reduction.

Guided input

Enhanced infeed guiding that centres coil in roller for greater stability and less machine stress.

Designed to save

The smart design features we’ve engineered in the roll formers work together to deliver ROI faster.

Features

Brochure

Scottruss Brochure Cover

ScotTruss Roll Former Brochure

Take your steel framing operation to a new dimension.

Download BrochureDownload Full Systems Comparison ChartDownload Decoiler Brochure

Scottruss 6050G1

Warranty Icon Scottsdale
1-year maintenance kit
Scotpanel warranty logo
1-year warranty
Scotpanel Speed Logo
1,490 m/hr (4,900 ft/hr) top operating speed
Scotpanel Gear logo
5,000-m Green Card ScotSteel & ScotRF license with unlimited software/machine support

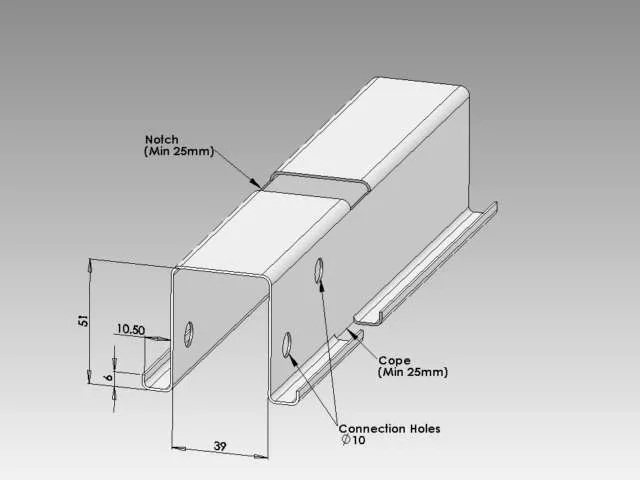

  • 50-mm (2-in.) hat section
  • 0.69 – 1.1 mm (22 – 18 Ga.) thickness range
  • 4.5 kW (5.5 hp) powertrain
  • 50:1 powertrain gearbox
  • Efficient 10-roller station set-up| less power use, less wear
  • Dual flat/finished toolset functionality
  • System ScotRF software pre-loaded control laptop
  • Manual in-feed coil thickness adjustment
  • 3,300-lb (1,500-kg) decoiler

Scottruss 6050G2

Warranty Icon Scottsdale
2-year maintenance kit
Scotpanel warranty logo
2-year warranty
Scotpanel Speed Logo
1,490 m/hr (4,900 ft/hr) top operating speed
Scotpanel Gear logo
Unlimited 1-Year Gold-Card ScotSteel & ScotRF license with unlimited software/machine support
  • 50-mm (2-in.) hat section
  • 0.69 – 1.1 mm (22 – 18 Ga.) thickness range
  • 4.5 kW (5.5 hp) powertrain
  • 50:1 powertrain gearbox
  • Efficient 10-roller station set-up| less power use, less wear
  • Dual flat/finished toolset functionality
  • System ScotRF software pre-loaded control laptop
  • Automatic in-feed coil thickness adjustment
  • 6,500-lb (2,950-kg) decoiler
  • Inkjet labelling printer
  • Standard workmanship toolkit
  • Enhanced cover with safety auto-shutoff

Features

Brochure

Scottruss Brochure Cover

ScotTruss Roll Former Brochure

Take your steel framing operation to a new dimension.

Download BrochureDownload Full Systems Comparison ChartDownload Decoiler Brochure

Scottruss 6075G1

Warranty Icon Scottsdale
1-year maintenance kit
Scotpanel warranty logo
1-year warranty
Scotpanel Speed Logo
1,490 m/hr (4,900 ft/hr) top operating speed
Scotpanel Gear logo
5,000-m Green Card ScotSteel & ScotRF license with unlimited software/machine support

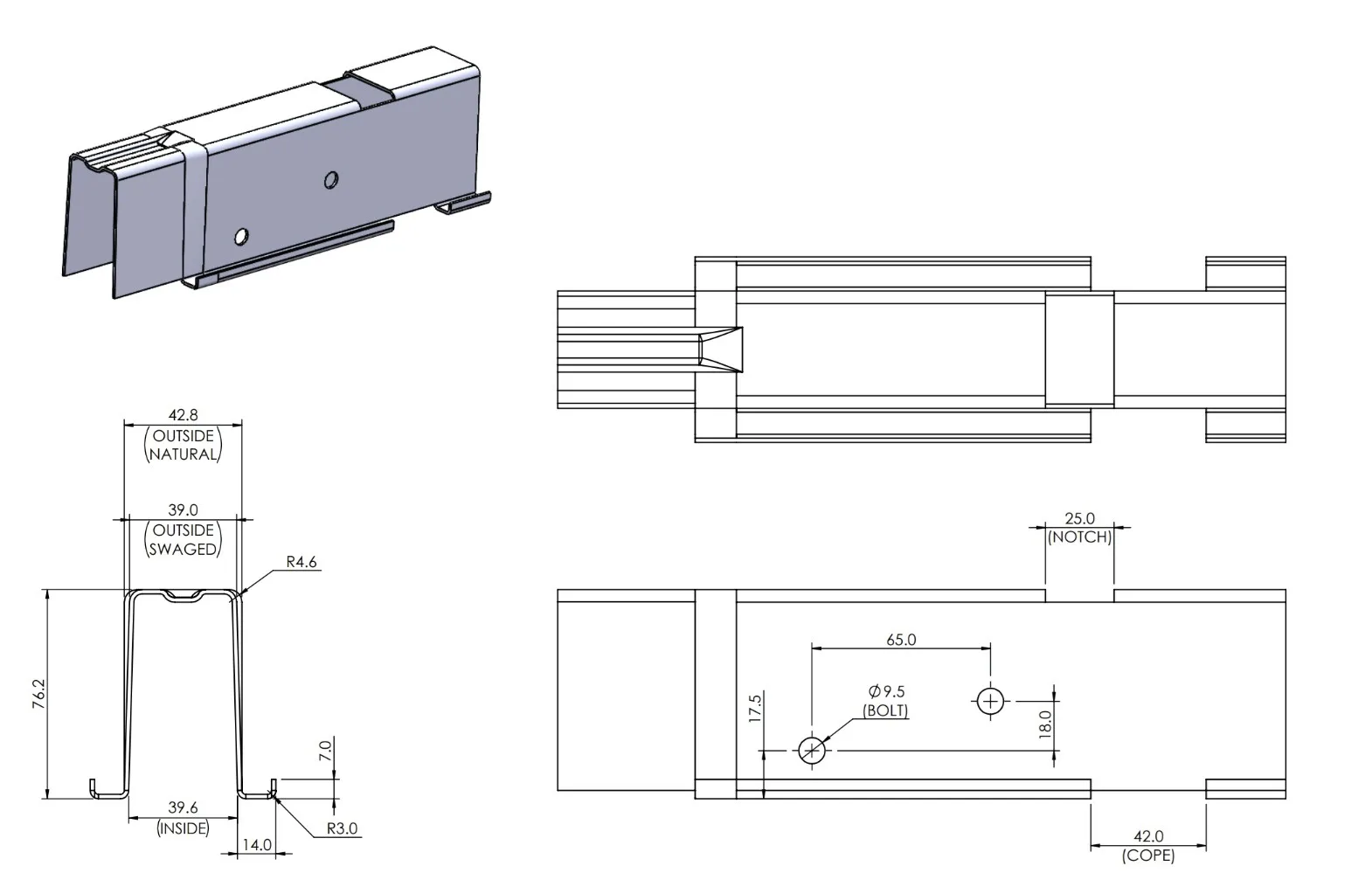

  • 75-mm (3-in.) hat section
  • 0.83 – 1.5 mm (20 – 16 Ga.) thickness range
  • 4.5 kW (5.5 hp) powertrain
  • 63:1 powertrain gearbox
  • Efficient 13-roller station set-up| less power use, less wear
  • System ScotRF software pre-loaded control laptop
  • Dual flat/finished toolset functionality
  • Manual in-feed coil thickness adjustment
  • 3,300-lb (1,500-kg) decoiler

Scottruss 6075G2

Warranty Icon Scottsdale
2-year maintenance kit
Scotpanel warranty logo
2-year warranty
Scotpanel Speed Logo
1,490 m/hr (4,900 ft/hr) top operating speed
Scotpanel Gear logo
Unlimited 1-Year Gold-Card ScotSteel & ScotRF license with unlimited software/machine support
  • 75-mm (3-in.) hat section
  • 0.83 – 1.5 mm (20 – 16 Ga.) thickness range
  • 4.5 kW (5.5 hp) powertrain
  • 63:1 powertrain gearbox
  • Efficient 13-roller station set-up| less power use, less wear
  • System ScotRF software pre-loaded control laptop
  • Dual flat/finished toolset functionality
  • Automatic in-feed coil thickness adjustment
  • 6,500-lb (2,950-kg) decoiler
  • Inkjet labelling printer
  • Standard workmanship toolkit
  • Enhanced cover with safety auto-shutoff
