Scotpanel Roll Forming Machines
HIGHLIGHTS
SPEEDIER PRODUCTION
Optimised drive and gearbox combination boost production output of rolled steel per hour.
SELF-ADJUSTING
Automatically adjusting stations save time setting roller pressure for different steel gauges.
Stronger finish
An end-bearing guillotine enables studs to sit flush for sturdier construction while saving on materials.
Safety first
All-over protective panels provide enclosed safety. Sliding top enables access as required.
Continuous assembly
Optimised fabrication sequencing ensures machine and team can work to max output.
Universal coil size
The 90mm (3.5”) machine uses a common coil for production flexibility and stock SKU reduction.
Guided input
Enhanced infeed guiding that centres coil in roller for greater stability and less machine stress.
Designed to save
The smart design features we’ve engineered in the roll formers work together to deliver ROI faster.
SCOTPANEL MODELS
FEATURES
Brochures & Resources
Scotpanel Roll Former Series Brochure
Take your steel framing operation to a new dimension.
Scotpanel 5090G1
1-year maintenance kit
1-year warranty
1,490 m/hr (4,900 ft/hr) top operating speed
5,000-m Green Card ScotSteel & ScotRF license with unlimited software/machine support

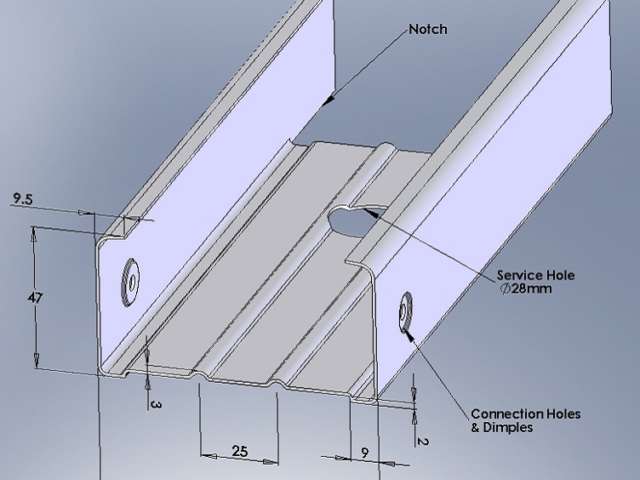

- 90-mm (3.5-in.) deep, 46-mm (1.8-in.) wide C-section
- 0.69 – 1.1 mm (22 – 18 Ga.) thickness range
- 2.2 kW (3 hp) powertrain
- 20:1 powertrain gearbox
- Efficient 7-roller station set-up| less power use, less wear
- System ScotRF software pre-loaded control laptop
- Manual in-feed coil thickness adjustment
- 3,300-lb (1,500-kg) decoiler
- Double-rivet functionality
Scotpanel 5090G2
1-year maintenance kit
1-year warranty
1,790 m/hr (5,900 ft/hr) top operating speed
Unlimited 1-year Gold Card ScotSteel & ScotRF license with unlimited software/machine support
- 90-mm (3.5-in.) deep, 46-mm (1.8-in.) wide C-section
- 0.69 – 1.2 mm (22 – 18 Ga.) thickness range
- 2.2 kW (3 hp) powertrain
- 12.5:1 powertrain gearbox
- Efficient 7-roller station set-up| less power use, less wear
- System ScotRF software pre-loaded control laptop
- Automatic in-feed coil thickness adjustment
- 3,300-lb (1,500-kg) decoiler
- Double-rivet functionality
- 20% more speed compared to G1
- Inkjet labelling printer
- Stud end-bearing toolset
- Plumbing hole punch toolset
Scotpanel 5090G3
2-year maintenance kit
2-year warranty
1,970 m/hr (6,500 ft/hr) top operating speed
Unlimited perpetual Platinum Card ScotSteel & ScotRF license with unlimited software/machine support
- 90-mm (3.5-in.) deep, 46-mm (1.8-in.) wide C-section
- 0.69 – 1.2 mm (22 – 18 Ga.) thickness range
- 4 kW (5.5 hp) powertrain
- 12.5:1 powertrain gearbox
- Efficient 9-roller station set-up| less power use, less wear
- System ScotRF software pre-loaded control laptop
- Automatic in-feed coil thickness adjustment
- 6,500-lb (2,950-kg) decoiler
- Double-rivet functionality
- 30% faster than G1, 10% faster than G2
- Inkjet labelling printer
- Stud end-bearing toolset
- Plumbing hole punch toolset
- Standard workmanship toolkit
- Enhanced cover with safety auto-shutoff
- Dual flat/finished toolset functionality
- Additional processing station (choice of bolt-hole, track slot, or an extra plumbing hole punch)
- TrueTrack reverse lip toolkit
FEATURES
Brochures & Resources
Scotpanel Roll Former Series Brochure
Take your steel framing operation to a new dimension.

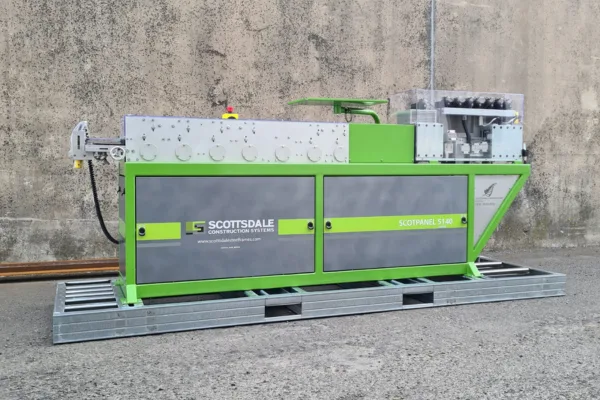

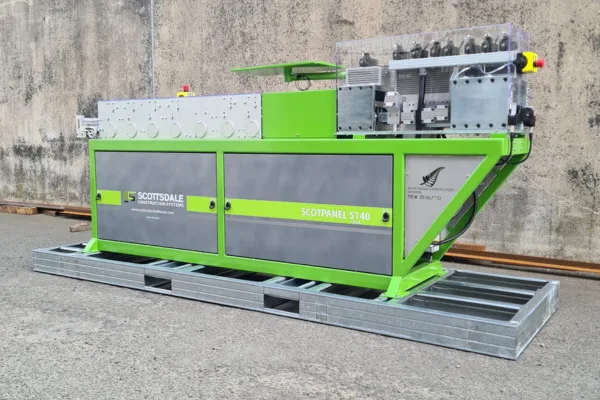

Scotpanel 5140G1
1-year maintenance kit
1-year warranty
1,490 m/hr (4,900 ft/hr) top operating speed
5,000-m Green Card ScotSteel & ScotRF license with unlimited software/machine support

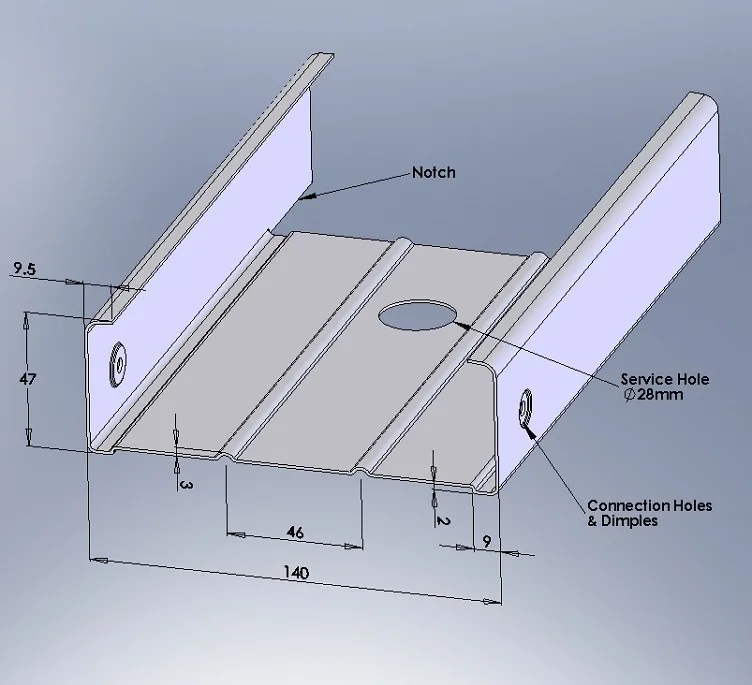

- 140-mm (5.5-in.) deep, 46-mm (1.8-in.) wide C-section
- 0.69 – 1.1 mm (22 – 18 Ga.) thickness range
- 2.2 kW (3 hp) powertrain
- 20:1 powertrain gearbox
- Efficient 7-roller station set-up| less power use, less wear
- System ScotRF software pre-loaded control laptop
- Manual in-feed coil thickness adjustment
- 3,300-lb (1,500-kg) decoiler
- Double-rivet functionality
Scotpanel 5140G2
1-year maintenance kit
1-year warranty
1,790 m/hr (5,900 ft/hr) top operating speed
Unlimited 1-year Gold Card ScotSteel & ScotRF license with unlimited software/machine support
- 140-mm (5.5-in.) deep, 46-mm (1.8-in.) wide C-section
- 0.69 – 1.2 mm (22 – 18 Ga.) thickness range
- 2.2 kW (3 hp) powertrain
- 12.5:1 powertrain gearbox
- Efficient 7-roller station set-up| less power use, less wear
- System ScotRF software pre-loaded control laptop
- Automatic in-feed coil thickness adjustment
- 3,300-lb (1,500-kg) decoiler
- Double-rivet functionality
- 20% more speed compared to G1
- Inkjet labelling printer
- Stud end-bearing toolset
- Plumbing hole punch toolset
Scotpanel 5140G3
2-year maintenance kit
2-year warranty
1,970 m/hr (6,500 ft/hr) top operating speed
Unlimited perpetual Platinum Card ScotSteel & ScotRF license with unlimited software/machine support
- 140-mm (5.5-in.) deep, 46-mm (1.8-in.) wide C-section
- 0.69 – 1.2 mm (22 – 18 Ga.) thickness range
- 4 kW (5.5 hp) powertrain
- 12.5:1 powertrain gearbox
- Efficient 9-roller station set-up| less power use, less wear
- System ScotRF software pre-loaded control laptop
- Automatic in-feed coil thickness adjustment
- 6,500-lb (2,950-kg) decoiler
- Double-rivet functionality
- 30% faster than G1, 10% faster than G2
- Inkjet labelling printer
- Stud end-bearing toolset
- Plumbing hole punch toolset
- Standard workmanship toolkit
- Enhanced cover with safety auto-shutoff
- Dual flat/finished toolset functionality
- Additional processing station (choice of bolt-hole, track slot, or an extra plumbing hole punch)
- TrueTrack reverse lip toolkit
FEATURES
Brochures & Resources
Scotpanel Roll Former Series Brochure
Take your steel framing operation to a new dimension.

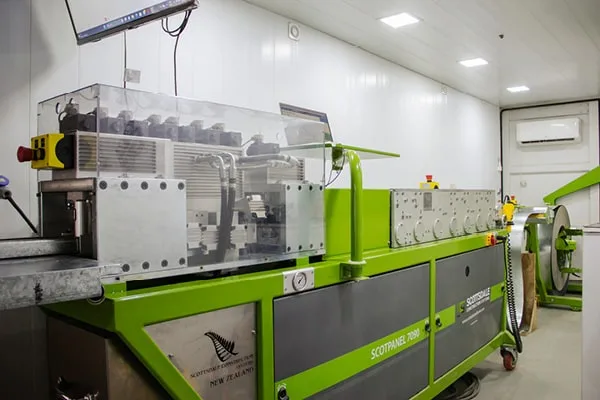

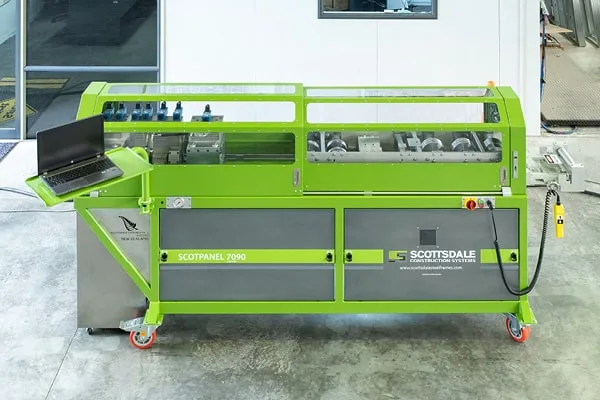

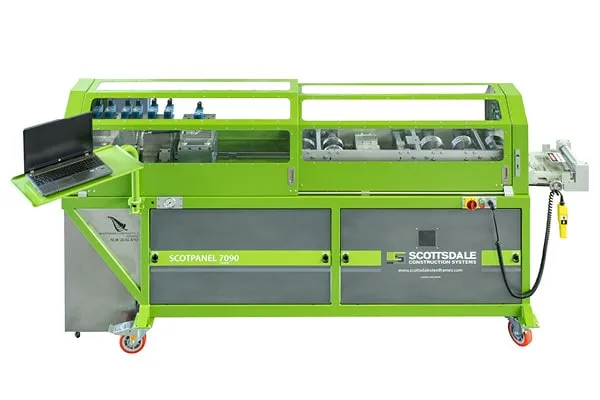

Scotpanel 7090G1
1-year maintenance kit
1-year warranty
1,490 m/hr (4,900 ft/hr) top operating speed
5,000-m Green Card ScotSteel & ScotRF license with unlimited software/machine support

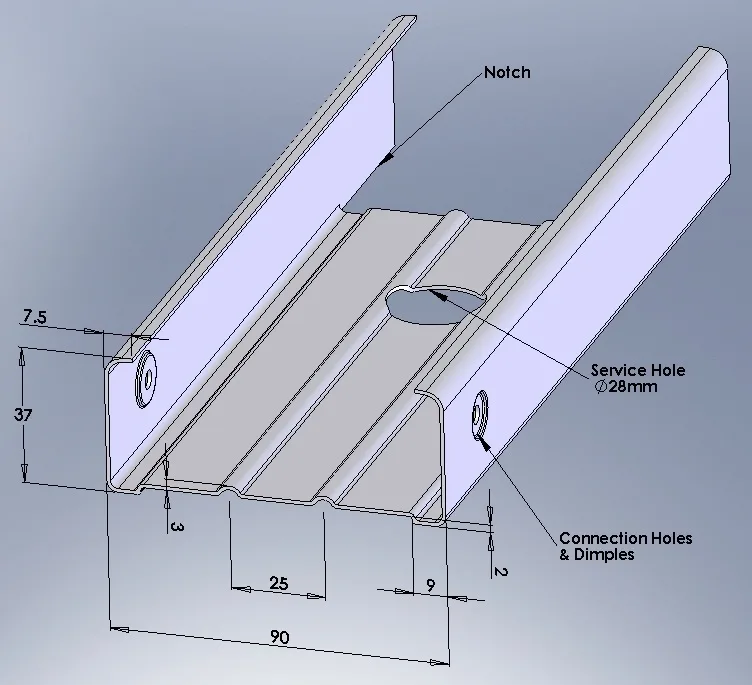

- 90-mm (3.5-in.) deep, 37-mm (1.5-in.) wide C-section
- 0.69 – 1.1 mm (22 – 18 Ga.) thickness range
- 2.2 kW (3 hp) powertrain
- 20:1 powertrain gearbox
- Efficient 7-roller station set-up| less power use, less wear
- System ScotRF software pre-loaded control laptop
- Manual in-feed coil thickness adjustment
- 3,300-lb (1,500-kg) decoiler
- Double-rivet functionality
Scotpanel 7090G2
1-year maintenance kit
1-year warranty
1,790 m/hr (5,900 ft/hr) top operating speed
Unlimited 1-year Gold Card ScotSteel & ScotRF license with unlimited software/machine support
- 90-mm (3.5-in.) deep, 37-mm (1.5-in.) wide C-section
- 0.69 – 1.2 mm (22 – 18 Ga.) thickness range
- 2.2 kW (3 hp) powertrain
- 12.5:1 powertrain gearbox
- Efficient 7-roller station set-up| less power use, less wear
- System ScotRF software pre-loaded control laptop
- Automatic in-feed coil thickness adjustment
- 3,300-lb (1,500-kg) decoiler
- Double-rivet functionality
- 20% more speed compared to G1
- Inkjet labelling printer
- Stud end-bearing toolset
- Plumbing hole punch toolset
Scotpanel 7090G3
2-year maintenance kit
2-year warranty
1,970 m/hr (6,500 ft/hr) top operating speed
Unlimited perpetual Platinum Card ScotSteel & ScotRF license with unlimited software/machine support
- 90-mm (3.5-in.) deep, 37-mm (1.5-in.) wide C-section
- 0.69 – 1.2 mm (22 – 18 Ga.) thickness range
- 4 kW (5.5 hp) powertrain
- 12.5:1 powertrain gearbox
- Efficient 9-roller station set-up| less power use, less wear
- System ScotRF software pre-loaded control laptop
- Automatic in-feed coil thickness adjustment
- 6,500-lb (2,950-kg) decoiler
- Double-rivet functionality
- 30% faster than G1, 10% faster than G2
- Inkjet labelling printer
- Stud end-bearing toolset
- Plumbing hole punch toolset
- Standard workmanship toolkit
- Enhanced cover with safety auto-shutoff
- Dual flat/finished toolset functionality
- Additional processing station (choice of bolt-hole, track slot, or an extra plumbing hole punch)
- TrueTrack reverse lip toolkit
FEATURES
Brochures & Resources
Scotpanel Roll Former Series Brochure
Take your steel framing operation to a new dimension.
Scotpanel 7063G1
1-year maintenance kit
1-year warranty
1,490 m/hr (4,900 ft/hr) top operating speed
5,000-m Green Card ScotSteel & ScotRF license with unlimited software/machine support

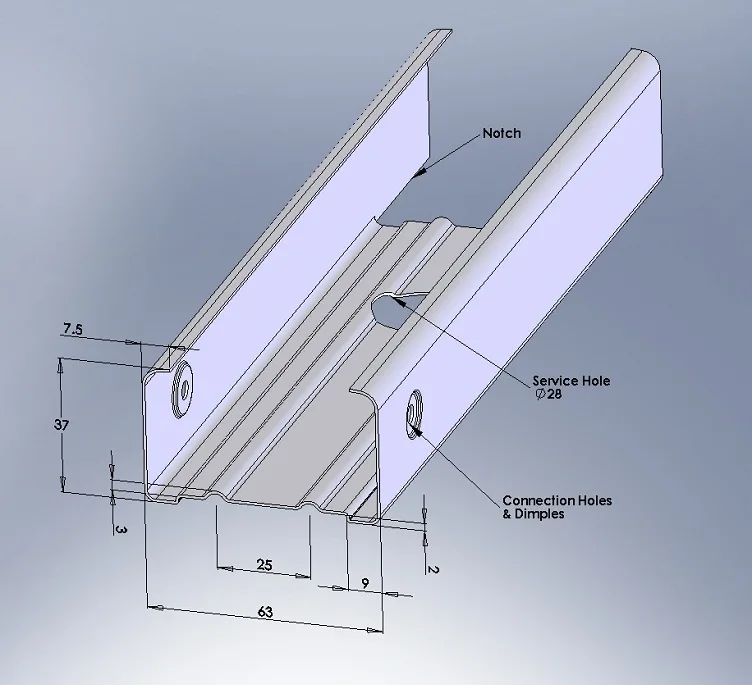

- 63-mm (2.5-in.) deep, 37-mm (1.5-in.) wide C-section
- 0.69-1.1 mm (22 – 18 Ga.) thickness range
- 2.2 kW (3 hp) powertrain
- 20:1 powertrain gearbox
- Efficient 7-roller station set-up| less power use, less wear
- System ScotRF software pre-loaded control laptop
- Manual in-feed coil thickness adjustment
- 3,300-lb (1,500-kg) decoiler
- Double-rivet functionality
Scotpanel 7063G2
1-year maintenance kit
1-year warranty
1,790 m/hr (5,900 ft/hr) top operating speed
Unlimited 1-year Gold Card ScotSteel & ScotRF license with unlimited software/machine support
- 63-mm (2.5-in.) deep, 37-mm (1.5-in.) wide C-section
- 0.69-1.2 mm (22 – 18 Ga.) thickness range
- 2.2 kW (3 hp) powertrain
- 12.5:1 powertrain gearbox
- Efficient 7-roller station set-up| less power use, less wear
- System ScotRF software pre-loaded control laptop
- Automatic in-feed coil thickness adjustment
- 3,300-lb (1,500-kg) decoiler
- Double-rivet functionality
- 20% more speed compared to G1
- Inkjet labelling printer
- Stud end-bearing toolset
- Plumbing hole punch toolset
Scotpanel 7063G3
2-year maintenance kit
2-year warranty
1,970 m/hr (6,500 ft/hr) top operating speed
Unlimited perpetual Platinum Card ScotSteel & ScotRF license with unlimited software/machine support
- 63-mm (2.5-in.) deep, 37-mm (1.5-in.) wide C-section
- 0.69 – 1.2 mm (22 – 18 Ga.) thickness range
- 4 kW (5.5 hp) powertrain
- 12.5:1 powertrain gearbox
- Efficient 9-roller station set-up| less power use, less wear
- System ScotRF software pre-loaded control laptop
- Automatic in-feed coil thickness adjustment
- 6,500-lb (2,950-kg) decoiler
- Double-rivet functionality
- 30% faster than G1, 10% faster than G2
- Inkjet labelling printer
- Stud end-bearing toolset
- Plumbing hole punch toolset
- Standard workmanship toolkit
- Enhanced cover with safety auto-shutoff
- Dual flat/finished toolset functionality
- Additional processing station (choice of bolt-hole, track slot, or an extra plumbing hole punch)
- TrueTrack reverse lip toolkit
FEATURES
Brochure
Scotpanel Roll Former Series Brochure
Take your steel framing operation to a new dimension.
Scotpanel 7070G1
1-year maintenance kit
1-year warranty
1,490 m/hr (4,900 ft/hr) top operating speed
5,000-m Green Card ScotSteel & ScotRF license with unlimited software/machine support

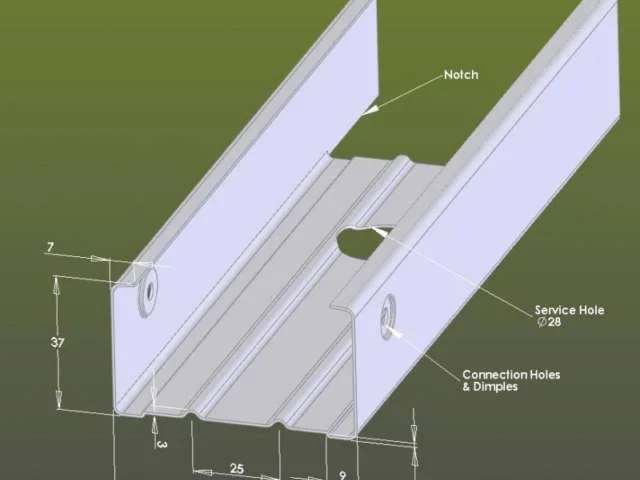

- 70-mm (2.8-in.) deep, 37-mm (1.5-in.) wide C-section
- 63 -140-mm (2.5 – 5.5-in.) C section
- 0.69-1.1 mm (22 – 18 Ga.) thickness range
- 2.2 kW (3 hp) powertrain
- 20:1 powertrain gearbox
- Efficient 7-roller station set-up| less power use, less wear
- System ScotRF software pre-loaded control laptop
- Manual in-feed coil thickness adjustment
- 3,300-lb (1,500-kg) decoiler
- Double-rivet functionality
Scotpanel 7070G2
1-year maintenance kit
1-year warranty
1,790 m/hr (5,900 ft/hr) top operating speed
Unlimited 1-year Gold Card ScotSteel & ScotRF license with unlimited software/machine support
- 70-mm (2.8-in.) deep, 37-mm (1.5-in.) wide C-section
- 0.69 – 1.2 mm (22 – 18 Ga.) thickness range
- 2.2 kW (3 hp) powertrain
- 12.5:1 powertrain gearbox
- Efficient 7-roller station set-up| less power use, less wear
- System ScotRF software pre-loaded control laptop
- Automatic in-feed coil thickness adjustment
- 3,300-lb (1,500-kg) decoiler
- Double-rivet functionality
- 20% more speed compared to G1
- Inkjet labelling printer
- Stud end-bearing toolset
- Plumbing hole punch toolset
Scotpanel 7070G3
2-year maintenance kit
2-year warranty
1,970 m/hr (6,500 ft/hr) top operating speed
Unlimited perpetual Platinum Card ScotSteel & ScotRF license with unlimited software/machine support
- 70-mm (2.8-in.) deep, 37-mm (1.5-in.) wide C-section
- 0.69 – 1.2 mm (22 – 18 Ga.) thickness range
- 4 kW (5.5 hp) powertrain
- 12.5:1 powertrain gearbox
- Efficient 9-roller station set-up| less power use, less wear
- System ScotRF software pre-loaded control laptop
- Automatic in-feed coil thickness adjustment
- 6,500-lb (2,950-kg) decoiler
- Double-rivet functionality
- 30% faster than G1, 10% faster than G2
- Inkjet labelling printer
- Stud end-bearing toolset
- Plumbing hole punch toolset
- Standard workmanship toolkit
- Enhanced cover with safety auto-shutoff
- Dual flat/finished toolset functionality
- Additional processing station (choice of bolt-hole, track slot, or an extra plumbing hole punch)
- TrueTrack reverse lip toolkit
FEATURES
Brochures & Resources
Scotpanel Roll Former Series Brochure
Take your steel framing operation to a new dimension.
Scotpanel 7076G1
1-year maintenance kit
1-year warranty
1,490 m/hr (4,900 ft/hr) top operating speed
5,000-m Green Card ScotSteel & ScotRF license with unlimited software/machine support
- 76-mm (3.0-in.) deep, 37-mm (1.5-in.) wide C-section
- 0.69-1.1 mm (22 – 18 Ga.) thickness range
- 2.2 kW (3 hp) powertrain
- 20:1 powertrain gearbox
- Efficient 7-roller station set-up| less power use, less wear
- System ScotRF software pre-loaded control laptop
- Manual in-feed coil thickness adjustment
- 3,300-lb (1,500-kg) decoiler
- Double-rivet functionality
Scotpanel 7076G2
1-year maintenance kit
1-year warranty
1,790 m/hr (5,900 ft/hr) top operating speed
Unlimited 1-year Gold Card ScotSteel & ScotRF license with unlimited software/machine support
- 76-mm (3.0-in.) deep, 37-mm (1.5-in.) wide C-section
- 0.69 – 1.2 mm (22 – 18 Ga.) thickness range
- 2.2 kW (3 hp) powertrain
- 12.5:1 powertrain gearbox
- Efficient 7-roller station set-up| less power use, less wear
- System ScotRF software pre-loaded control laptop
- Automatic in-feed coil thickness adjustment
- 3,300-lb (1,500-kg) decoiler
- Double-rivet functionality
- 20% more speed compared to G1
- Inkjet labelling printer
- Stud end-bearing toolset
- Plumbing hole punch toolset
Scotpanel 7076G3
2-year maintenance kit
2-year warranty
1,970 m/hr (6,500 ft/hr) top operating speed
Unlimited perpetual Platinum Card ScotSteel & ScotRF license with unlimited software/machine support

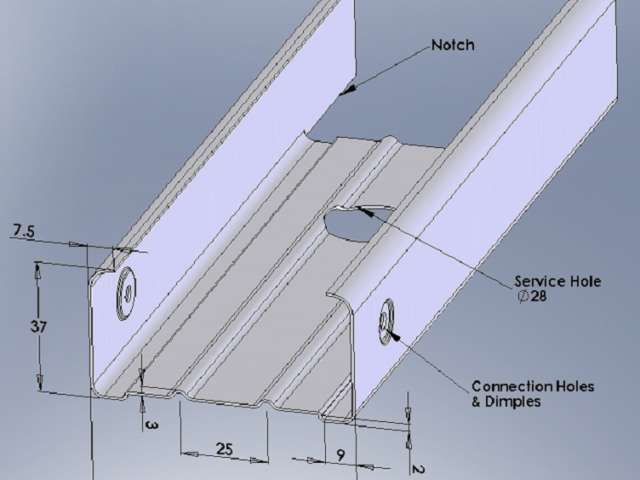

- 76-mm (3.0-in.) deep, 37-mm (1.5-in.) wide C-section
- 0.69 – 1.2 mm (22 – 18 Ga.) thickness range
- 4 kW (5.5 hp) powertrain
- 12.5:1 powertrain gearbox
- Efficient 9-roller station set-up| less power use, less wear
- System ScotRF software pre-loaded control laptop
- Automatic in-feed coil thickness adjustment
- 6,500-lb (2,950-kg) decoiler
- Double-rivet functionality
- 30% faster than G1, 10% faster than G2
- Inkjet labelling printer
- Stud end-bearing toolset
- Plumbing hole punch toolset
- Standard workmanship toolkit
- Enhanced cover with safety auto-shutoff
- Dual flat/finished toolset functionality
- Additional processing station (choice of bolt-hole, track slot, or an extra plumbing hole punch)
- TrueTrack reverse lip toolkit
FEATURES
Brochures & Resources
Scotpanel Roll Former Series Brochure
Take your steel framing operation to a new dimension.
Scotpanel 7140G1
1-year maintenance kit
1-year warranty
1,490 m/hr (4,900 ft/hr) top operating speed
5,000-m Green Card ScotSteel & ScotRF license with unlimited software/machine support
- 140-mm (5.5-in.) deep, 37-mm (1.5-in.) wide C section
- 0.69 – 1.1 mm (22 – 18 Ga.) thickness range
- 2.2 kW (3 hp) powertrain
- 20:1 powertrain gearbox
- Efficient 7-roller station set-up| less power use, less wear
- System ScotRF software pre-loaded control laptop
- Manual in-feed coil thickness adjustment
- 3,300-lb (1,500-kg) decoiler
- Double-rivet functionality
Scotpanel 7140G2
1-year maintenance kit
1-year warranty
1,790 m/hr (5,900 ft/hr) top operating speed
Unlimited 1-year Gold Card ScotSteel & ScotRF license with unlimited software/machine support
- 140-mm (5.5-in.) deep, 37-mm (1.5-in.) wide C section
- 0.69 – 1.2 mm (22 – 18 Ga.) thickness range
- 2.2 kW (3 hp) powertrain
- 12.5:1 powertrain gearbox
- Efficient 7-roller station set-up| less power use, less wear
- System ScotRF software pre-loaded control laptop
- Automatic in-feed coil thickness adjustment
- 3,300-lb (1,500-kg) decoiler
- Double-rivet functionality
- 20% more speed compared to G1
- Inkjet labelling printer
- Stud end-bearing toolset
- Plumbing hole punch toolset
Scotpanel 7140G3
2-year maintenance kit
2-year warranty
1,970 m/hr (6,500 ft/hr) top operating speed
Unlimited perpetual Platinum Card ScotSteel & ScotRF license with unlimited software/machine support
- 140-mm (5.5-in.) deep, 37-mm (1.5-in.) wide C section
- 0.69 – 1.2 mm (22 – 18 Ga.) thickness range
- 4 kW (5.5 hp) powertrain
- 12.5:1 powertrain gearbox
- Efficient 9-roller station set-up| less power use, less wear
- System ScotRF software pre-loaded control laptop
- Automatic in-feed coil thickness adjustment
- 6,500-lb (2,950-kg) decoiler
- Double-rivet functionality
- 30% faster than G1, 10% faster than G2
- Inkjet labelling printer
- Stud end-bearing toolset
- Plumbing hole punch toolset
- Standard workmanship toolkit
- Enhanced cover with safety auto-shutoff
- Dual flat/finished toolset functionality
- Additional processing station (choice of bolt-hole, track slot, or an extra plumbing hole punch)
- TrueTrack reverse lip toolkit
FEATURES
Brochures & Resources
Scotpanel Roll Former Series Brochure
Take your steel framing operation to a new dimension.

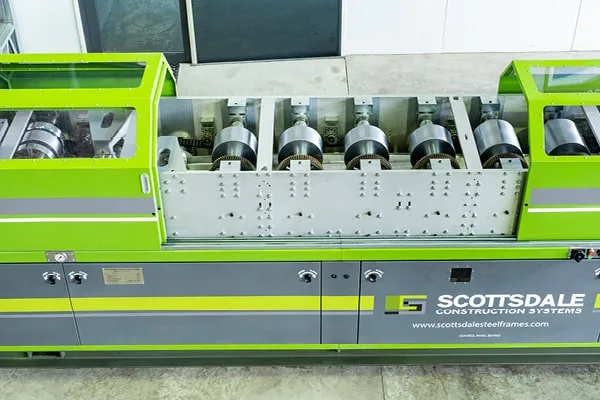

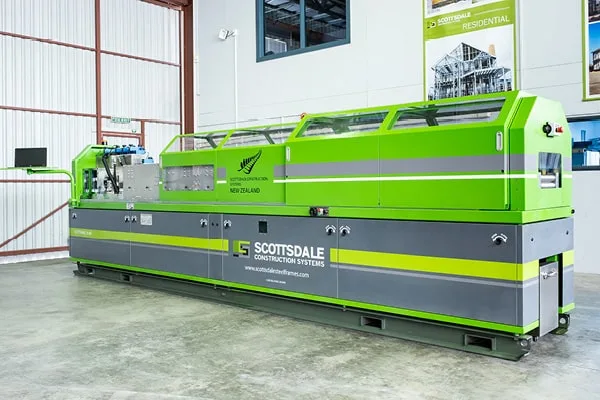

Scotpanel 8140G2
1-year maintenance kit
1-year warranty
1,490 m/hr (4,900 ft/hr) top operating speed
Unlimited 1-Year Gold Card ScotSteel & ScotRF license with unlimited software/machine support
- 140-mm (5.5-in.) deep, 46-mm (1.8-in.) wide C-section
- 17% more compression-efficient section
- 0.83-1.5 mm (20 – 16 Ga.) thickness range
- 7.5 kW (10 hp) powertrain
- 63:1 powertrain gearbox

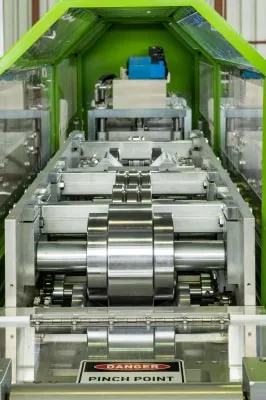

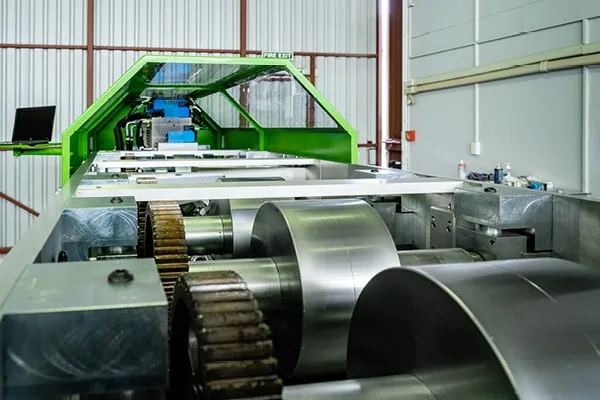

- 14-roller station set-up | superior power efficiency, extra wear reduction
- CNC system control ScotRF software pre-loaded control laptop
- Automatic in-feed coil thickness adjustment
- 6,500-lb (2,950-kg) decoiler
- Double-rivet functionality
- Inkjet labelling printer
- Stud end-bearing toolset
- Plumbing hole punch toolset
- Dual flat/finished toolset functionality
Scotpanel 8140G3
2-year maintenance kit
2-year warranty
1,490 m/hr (4,900 ft/hr) top operating speed
Unlimited Perpetual Platinum Card ScotSteel & ScotRF license with unlimited software/machine support
- 140-mm (5.5-in.) deep, 46-mm (1.8-in.) wide C-section
- 17% more compression-efficient section
- 0.83 -1.5 mm (20 – 16 Ga.) thickness range
- 7.5 kW (10 hp) powertrain
- 63:1 powertrain gearbox
- 14-roller station set-up | superior power efficiency, extra wear reduction
- CNC system control ScotRF software pre-loaded control laptop
- Automatic in-feed coil thickness adjustment
- 6,500-lb (2,950-kg) decoiler
- Double-rivet functionality
- Inkjet labelling printer
- Stud end-bearing toolset
- Plumbing hole punch toolset
- Dual flat/finished toolset functionality
- Standard workmanship toolkit
- Enhanced cover with safety auto-shutoff
- Reverse-lip (true U-track) toolset
- Additional processing station (choice of bolt-hole, track slot, or an extra plumbing hole punch)
