Master dynamic framing applications with the ultimate solution for nested and telescoping sections

HIGHLIGHTS

Better Performance

Capability of achieving up to 120 feet per minute with a servo (electric) drive with a maximum yield strength of 65 ksi & tensile strength of 75 ksi.

Expert Precision

Equipped with hydraulic cut-off and punch tools for precise operations.

Better Efficiency

With an integrated digital batch controller, you get a more efficient process management.

Beyond Standard Customization

Service hole, index, and anchor hole punches for custom, versatile applications.

Compatibility Standards

Meets ASTM A1008 and ASTM 653 standards for Grade 33 structural steel.

Multi-software compatibility

Knudson framing machine controllers are compatible with Strucsoft MWF, ScotSteel, Framebuilder MRD, and Vertex.

Features

Brochures & Resources

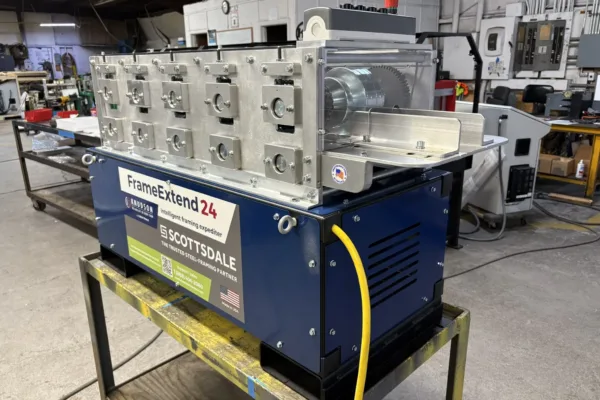

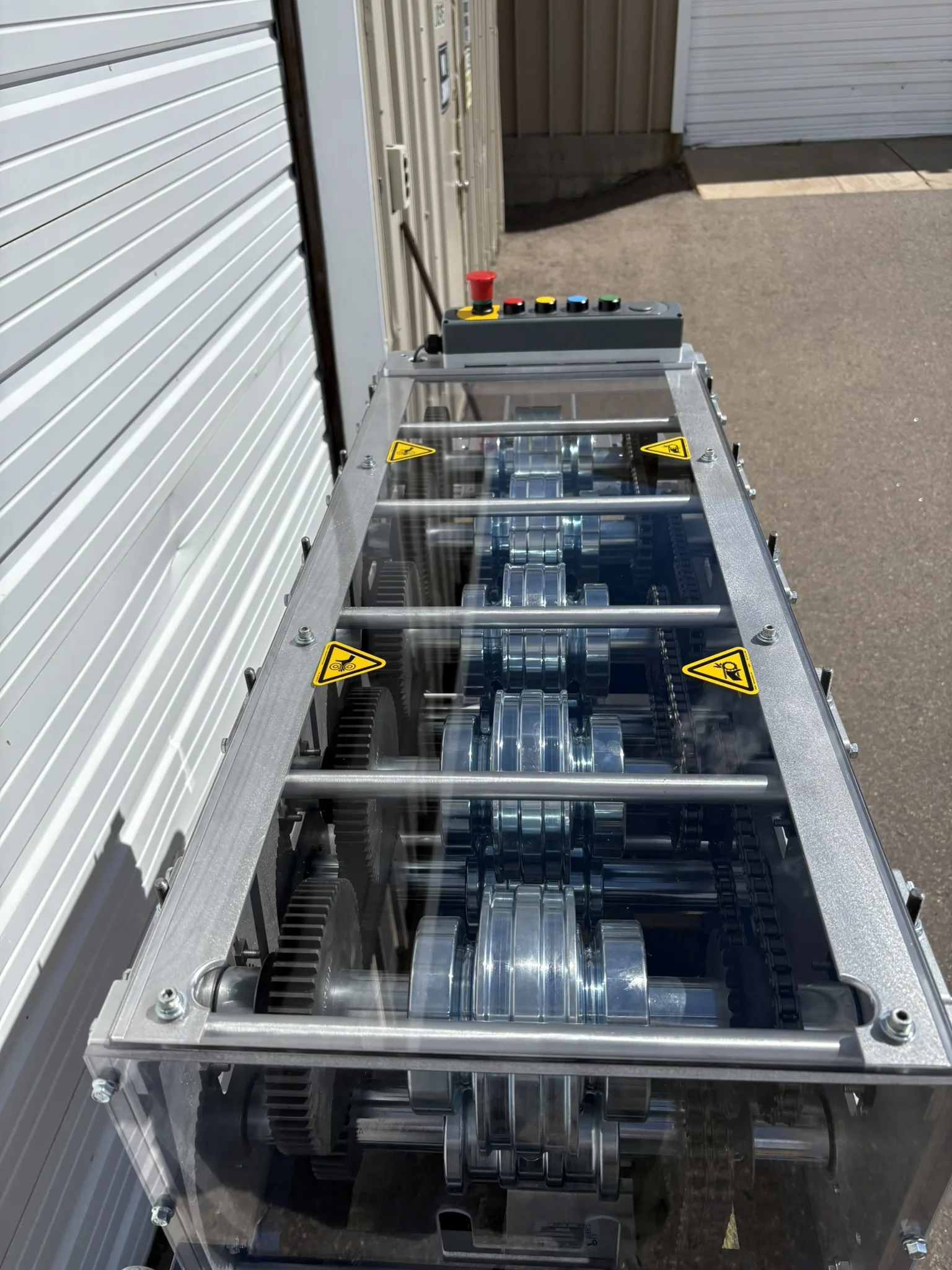

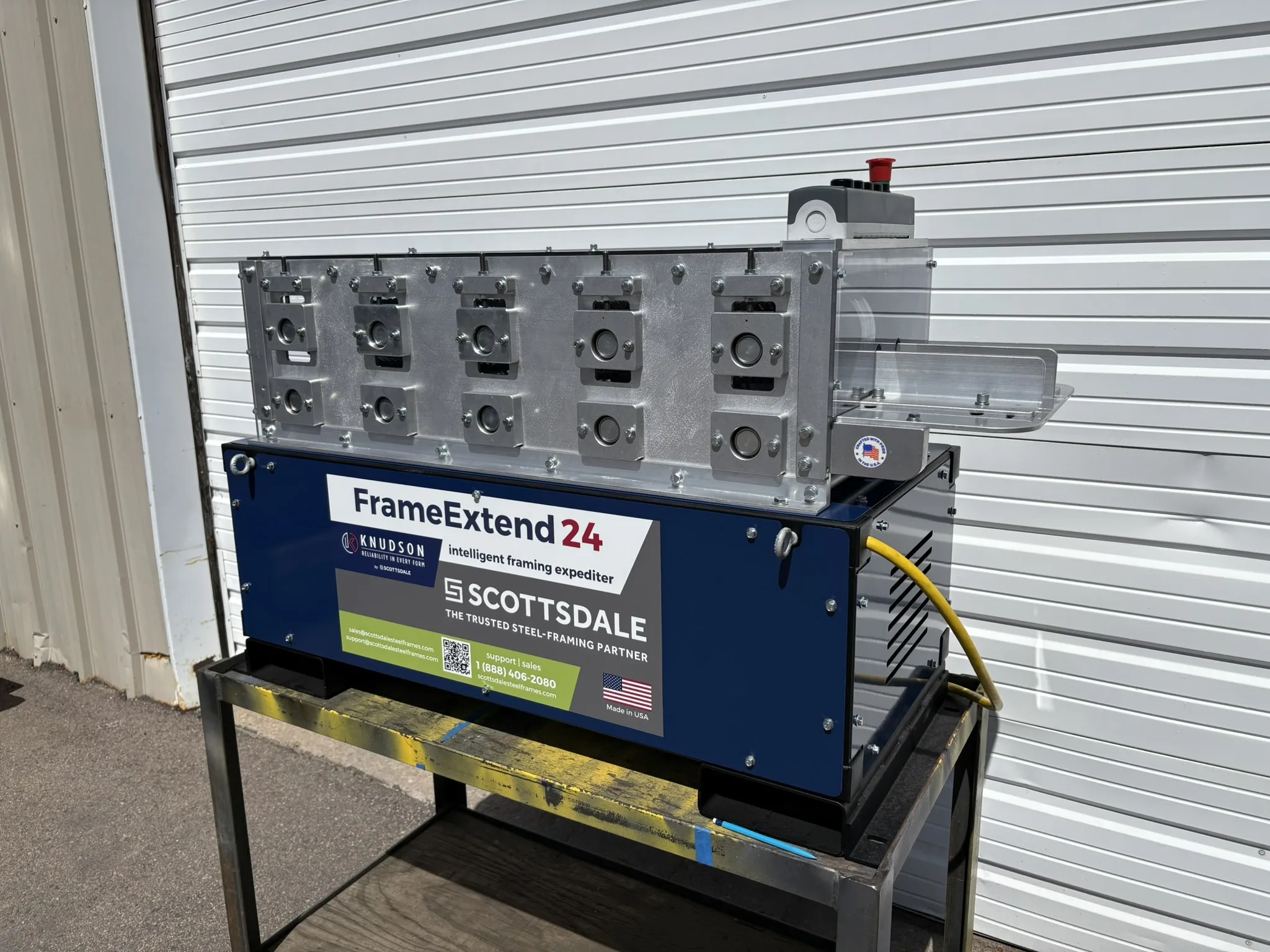

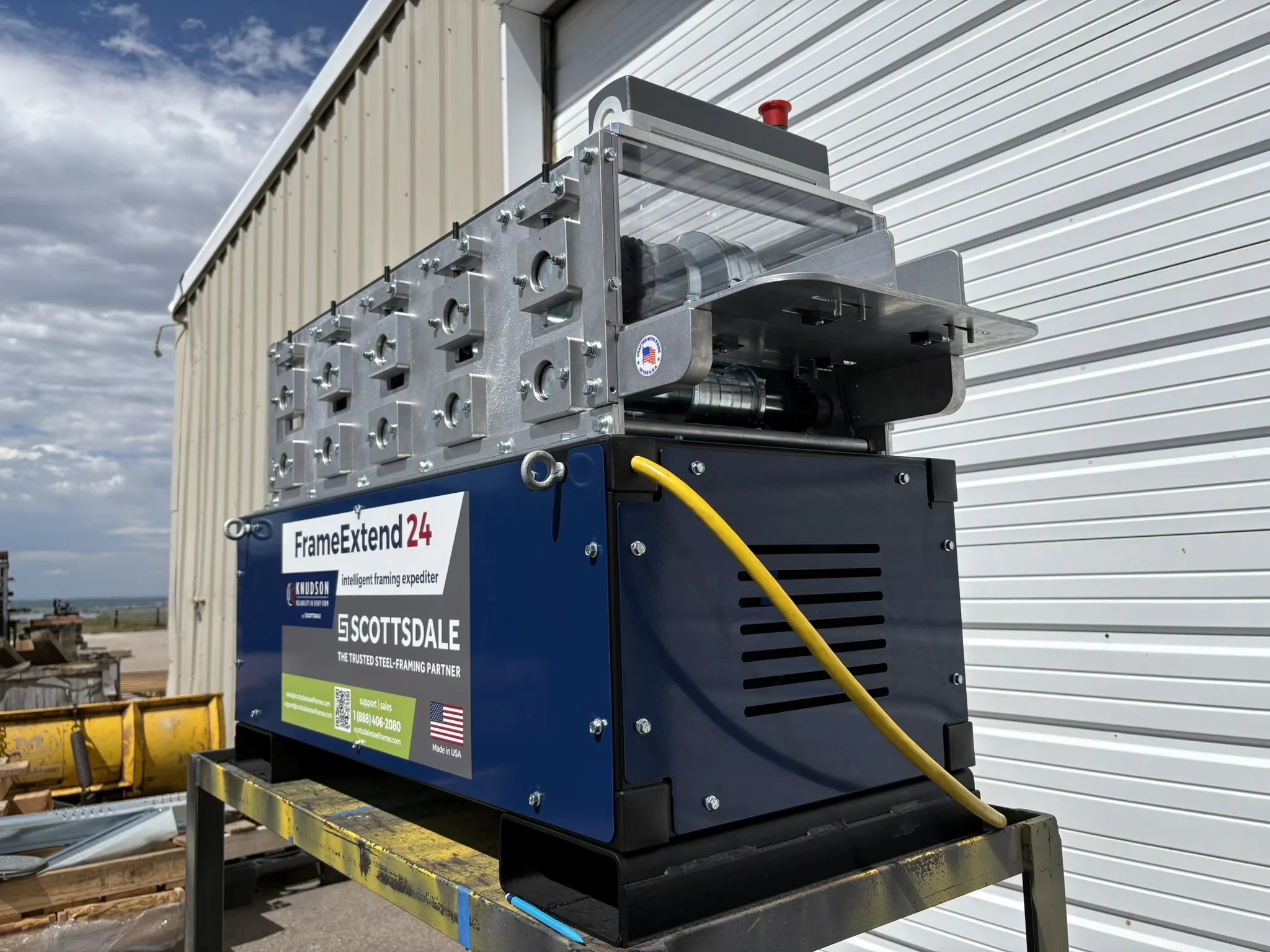

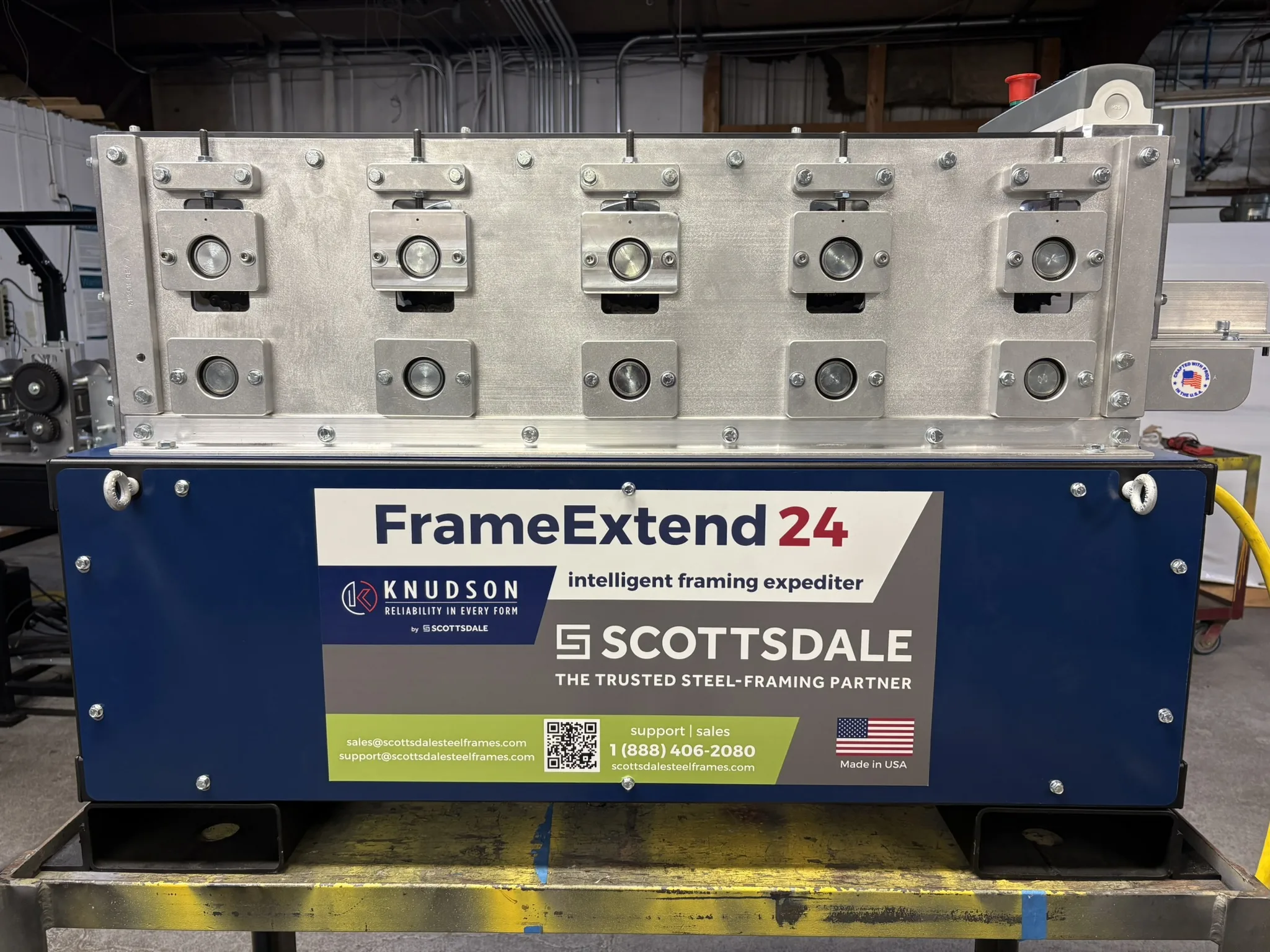

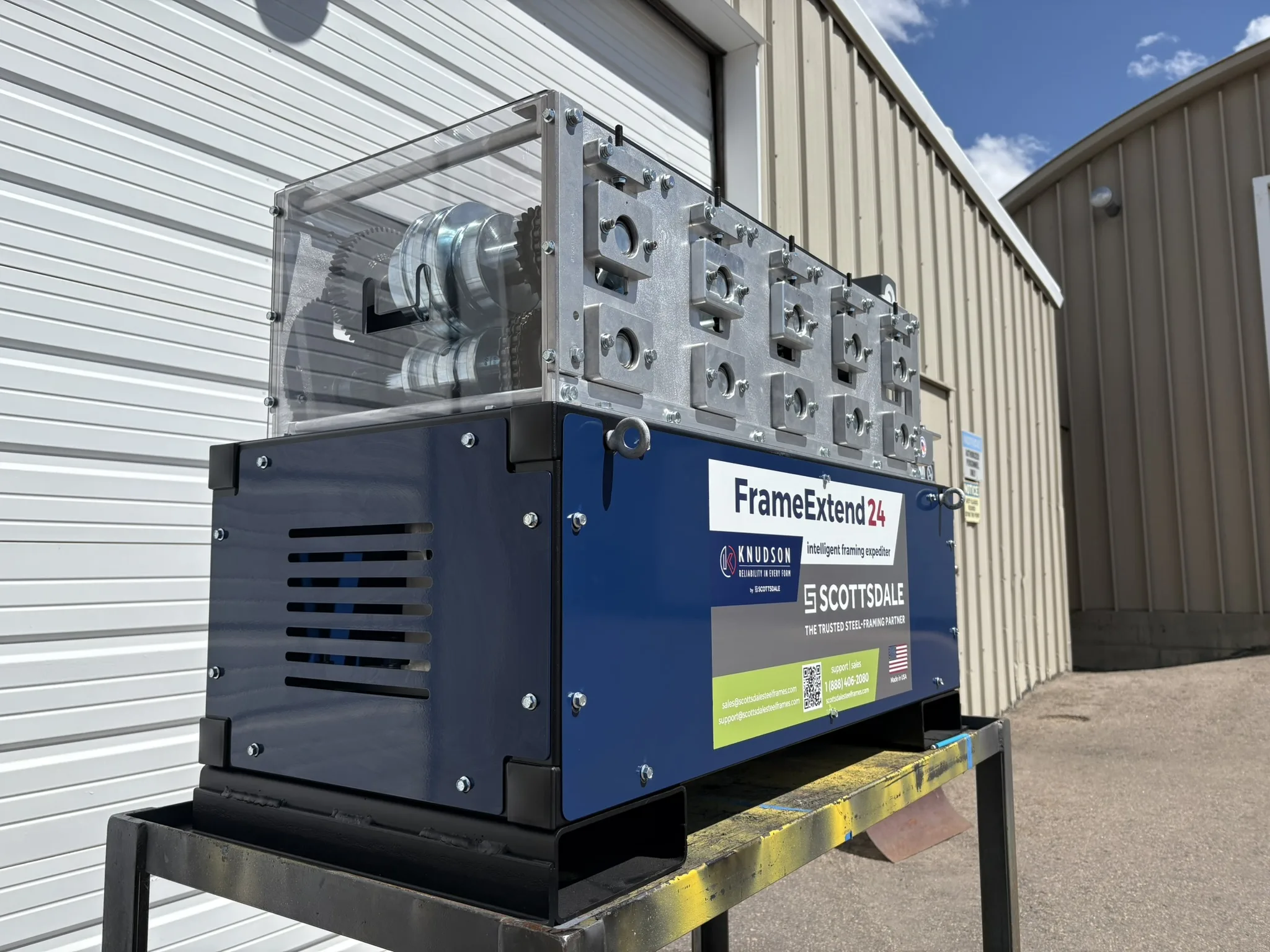

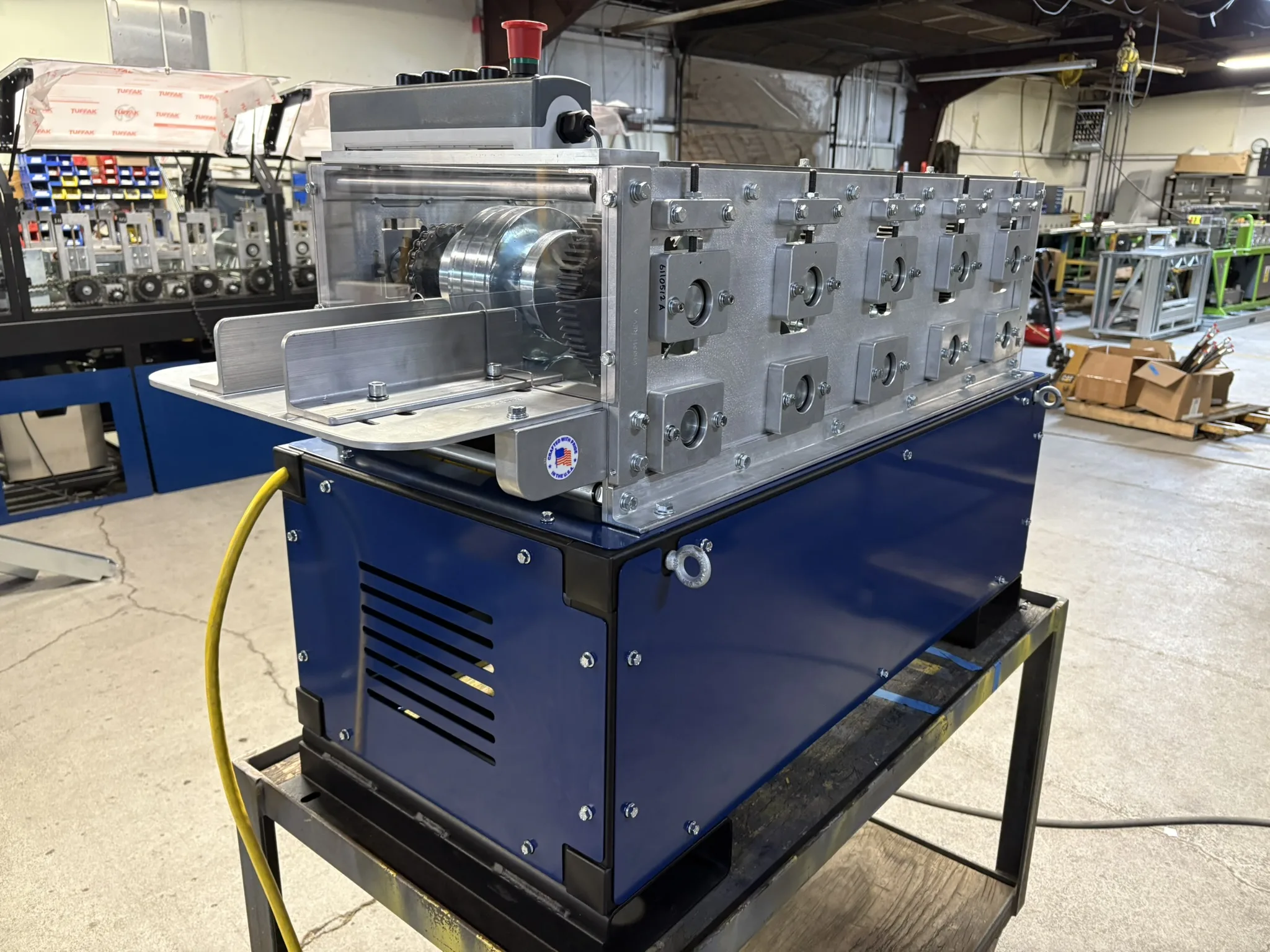

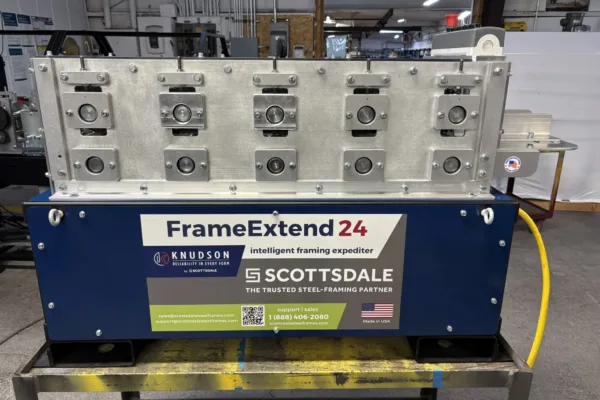

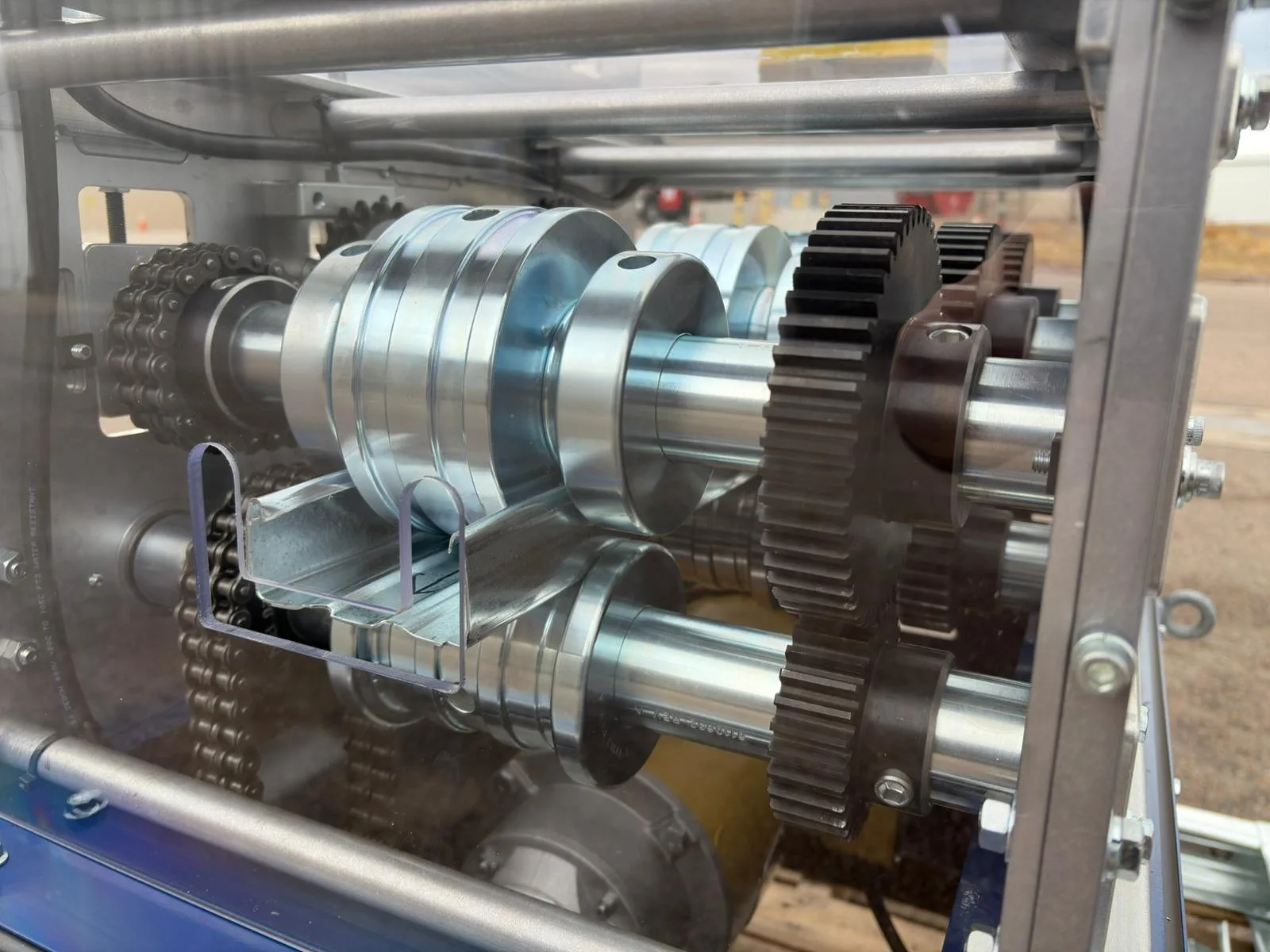

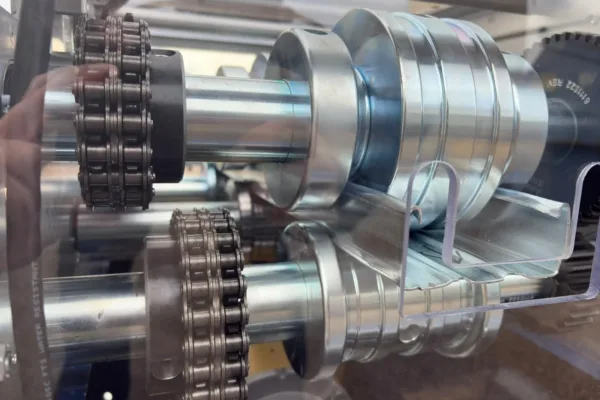

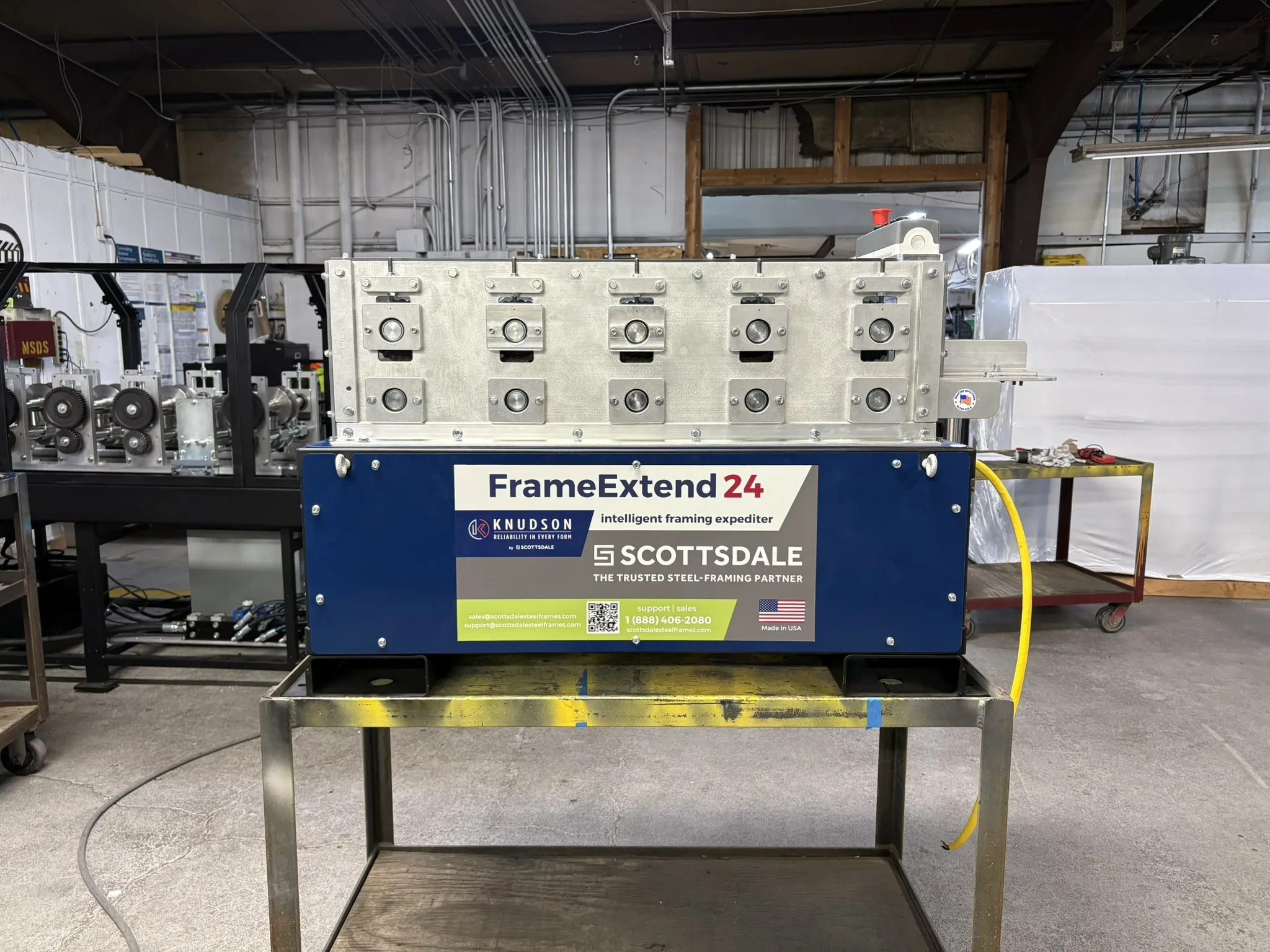

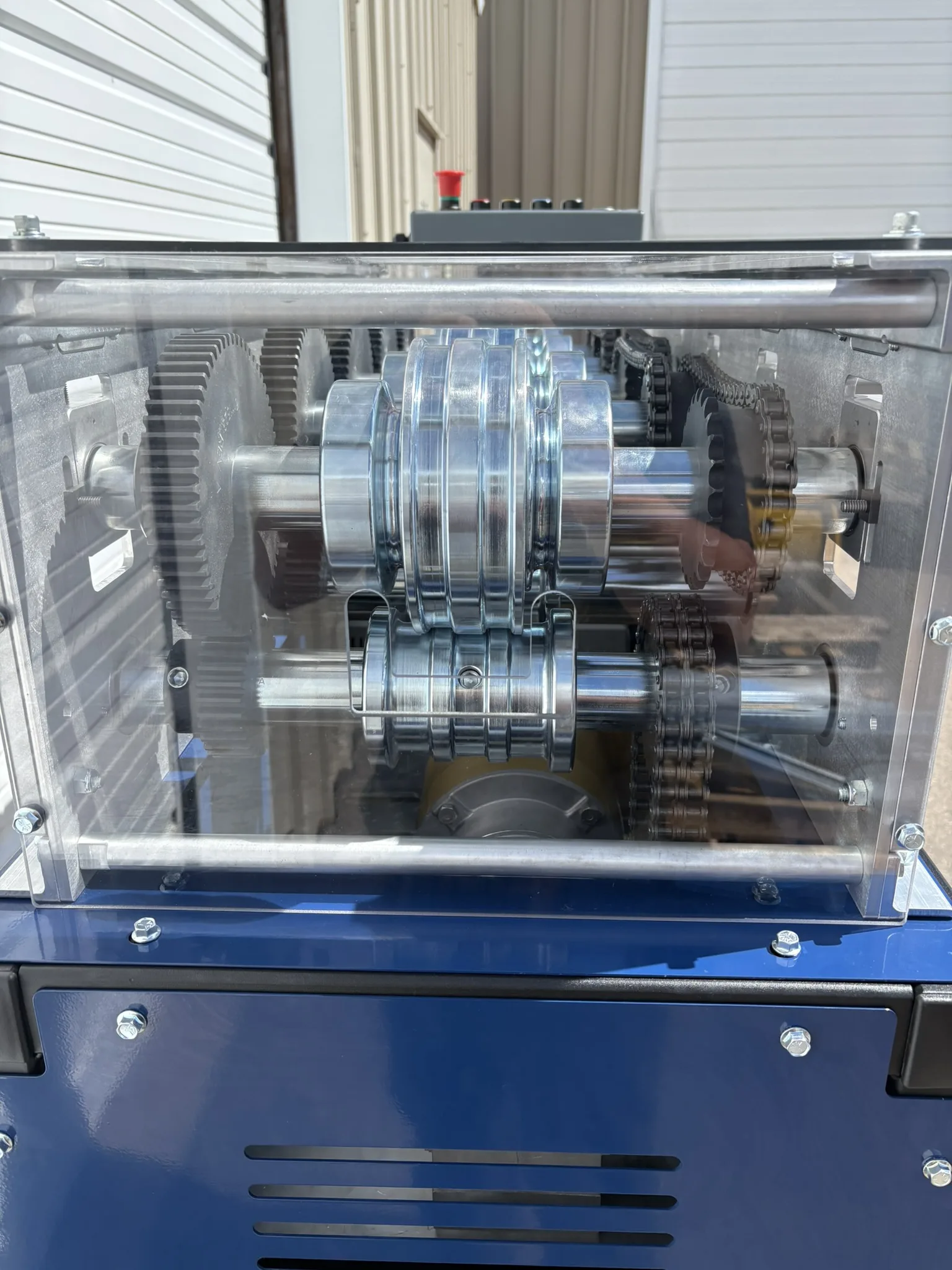

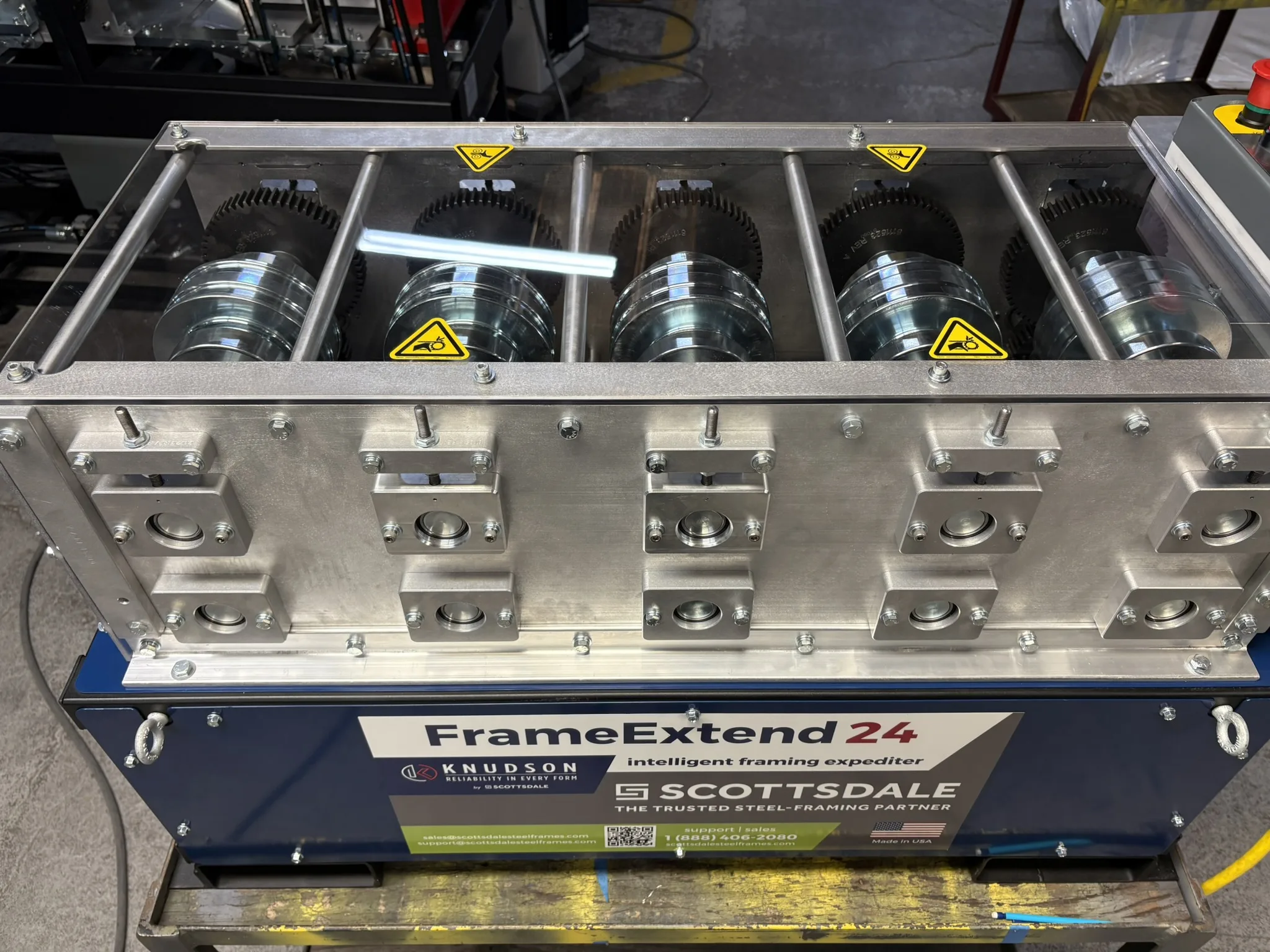

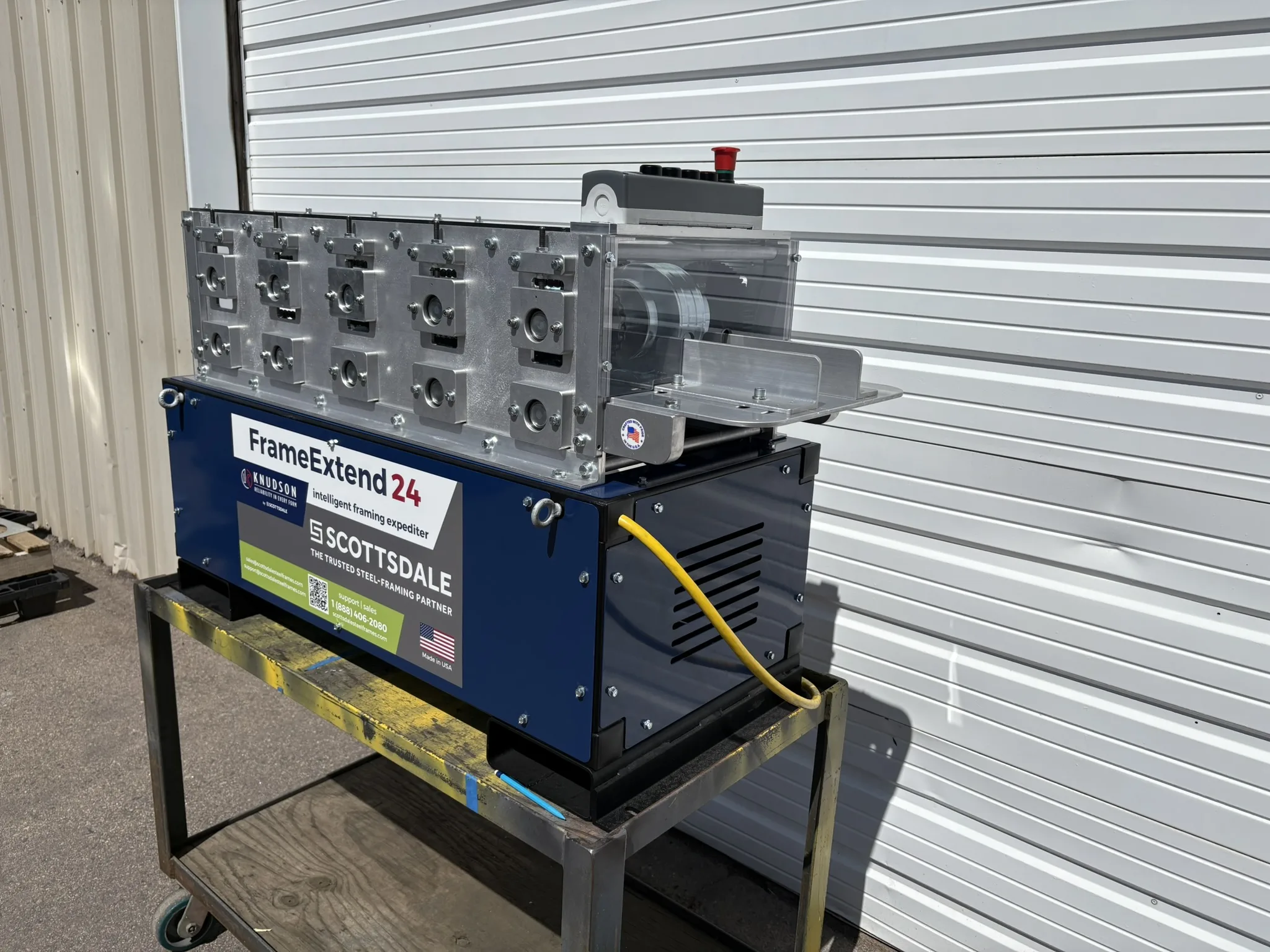

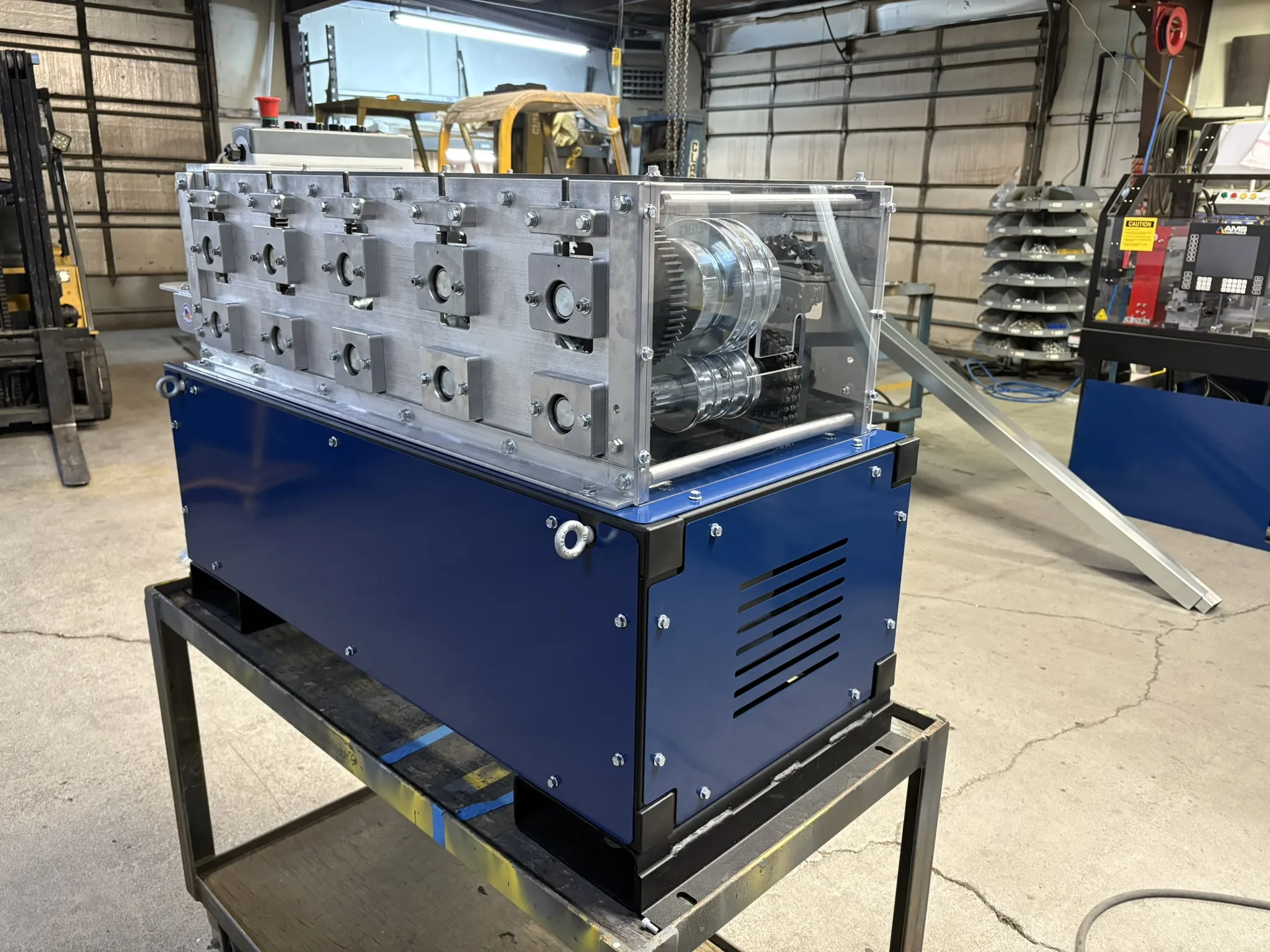

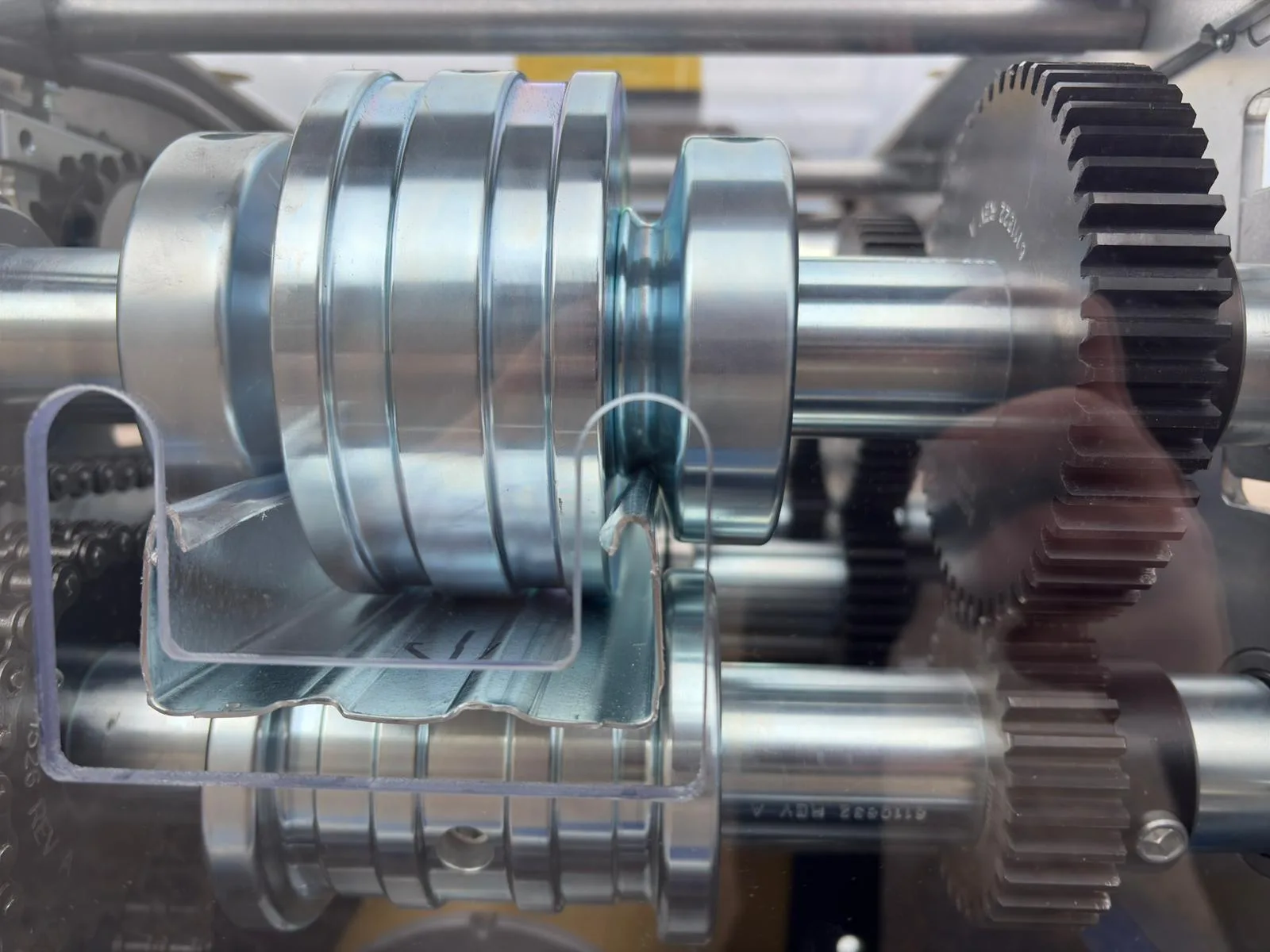

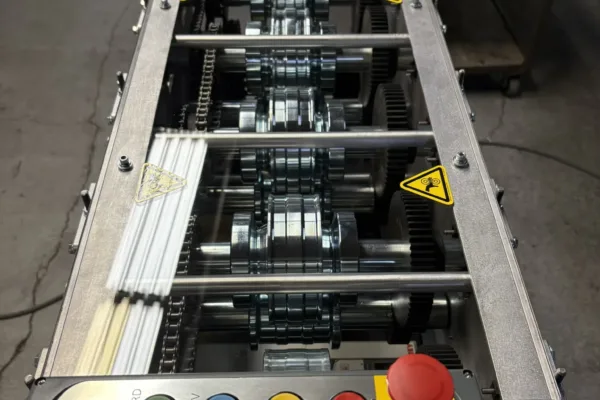

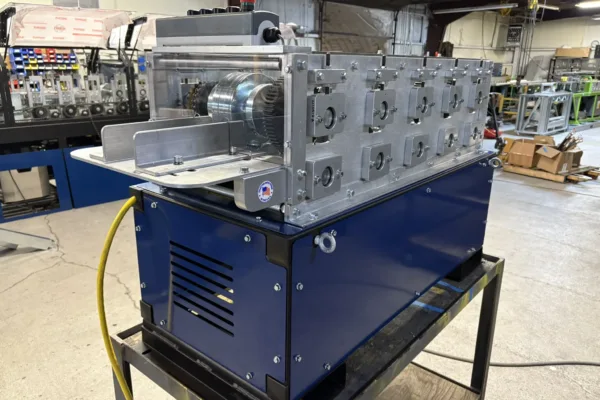

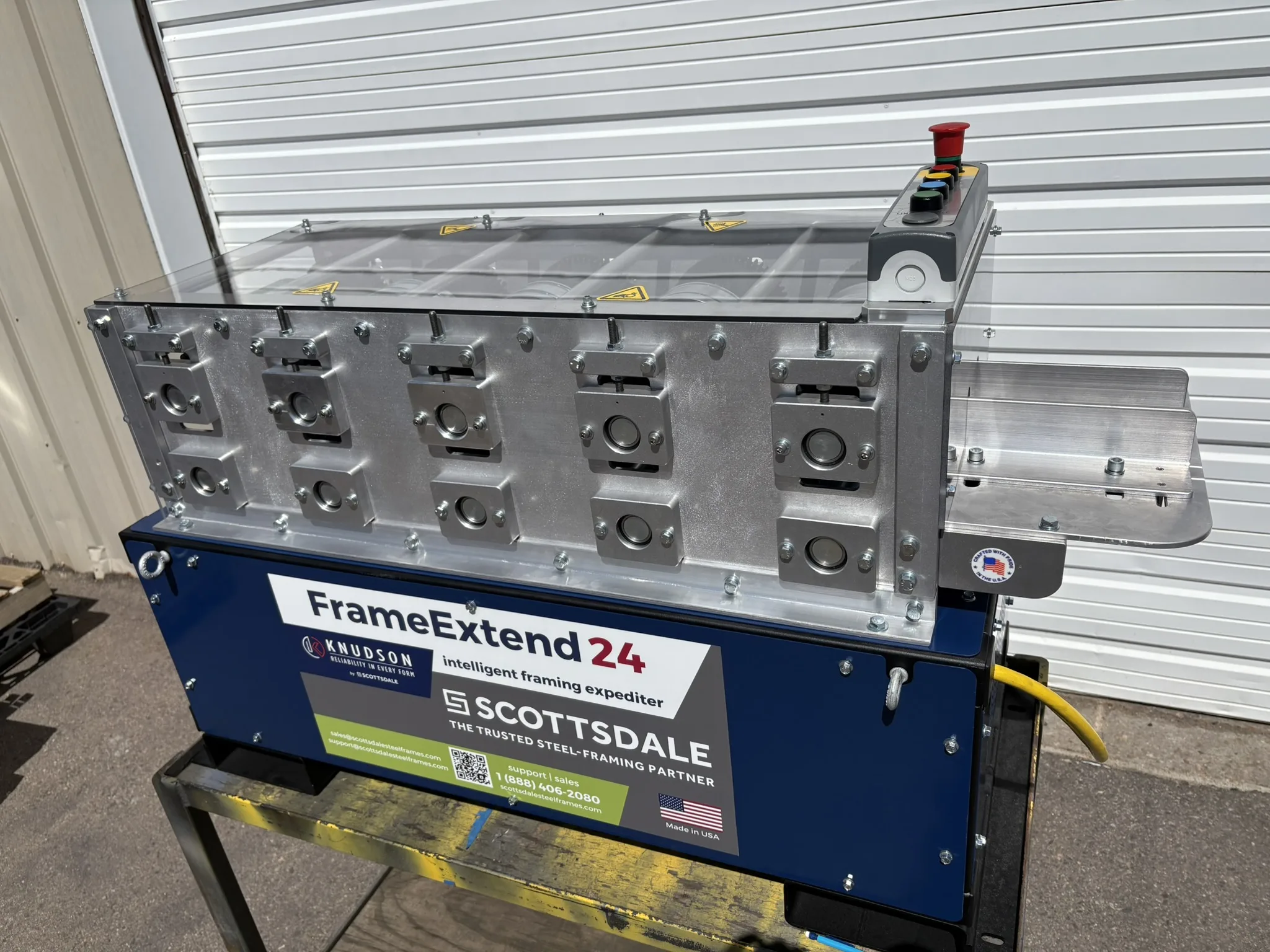

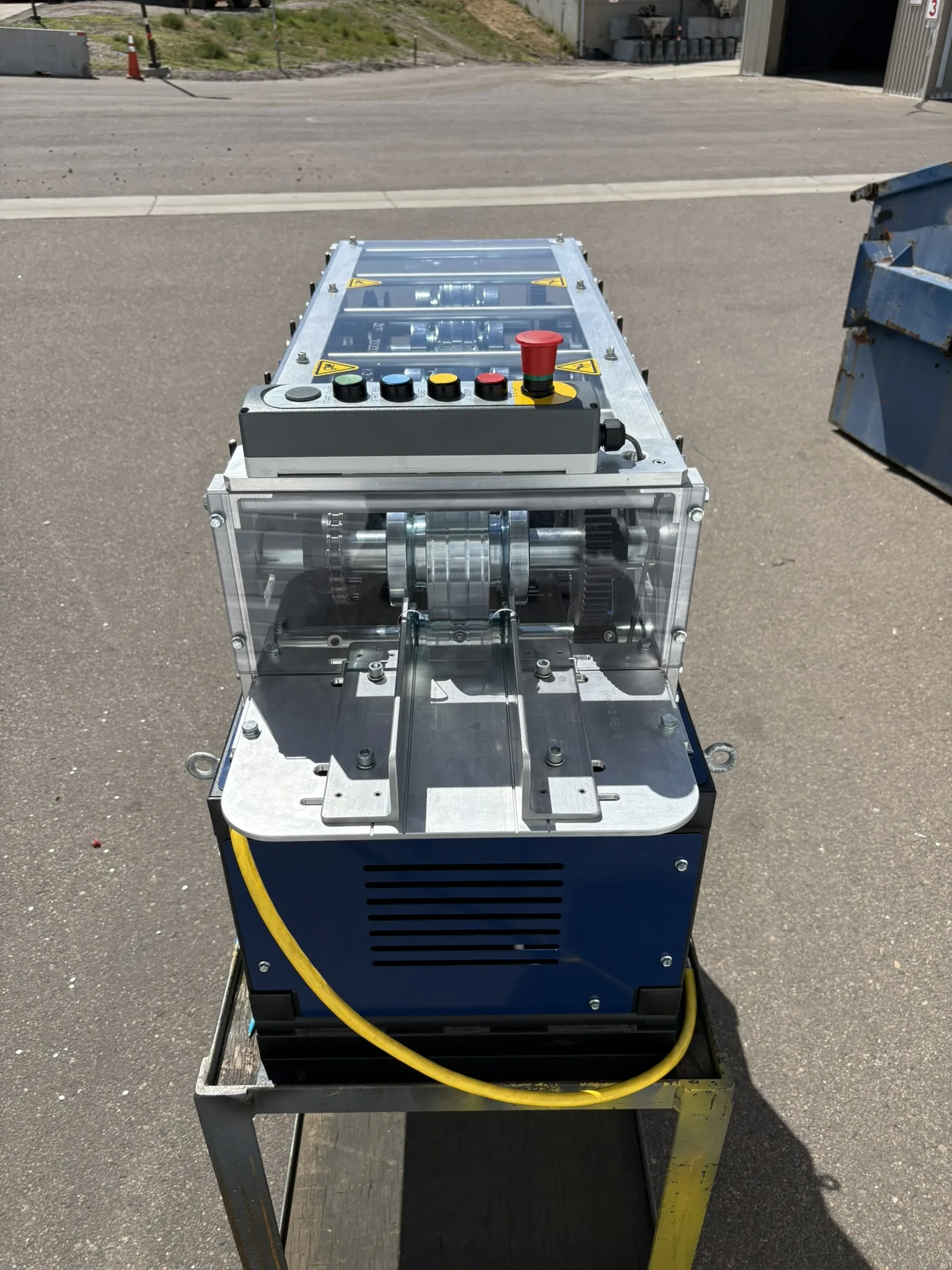

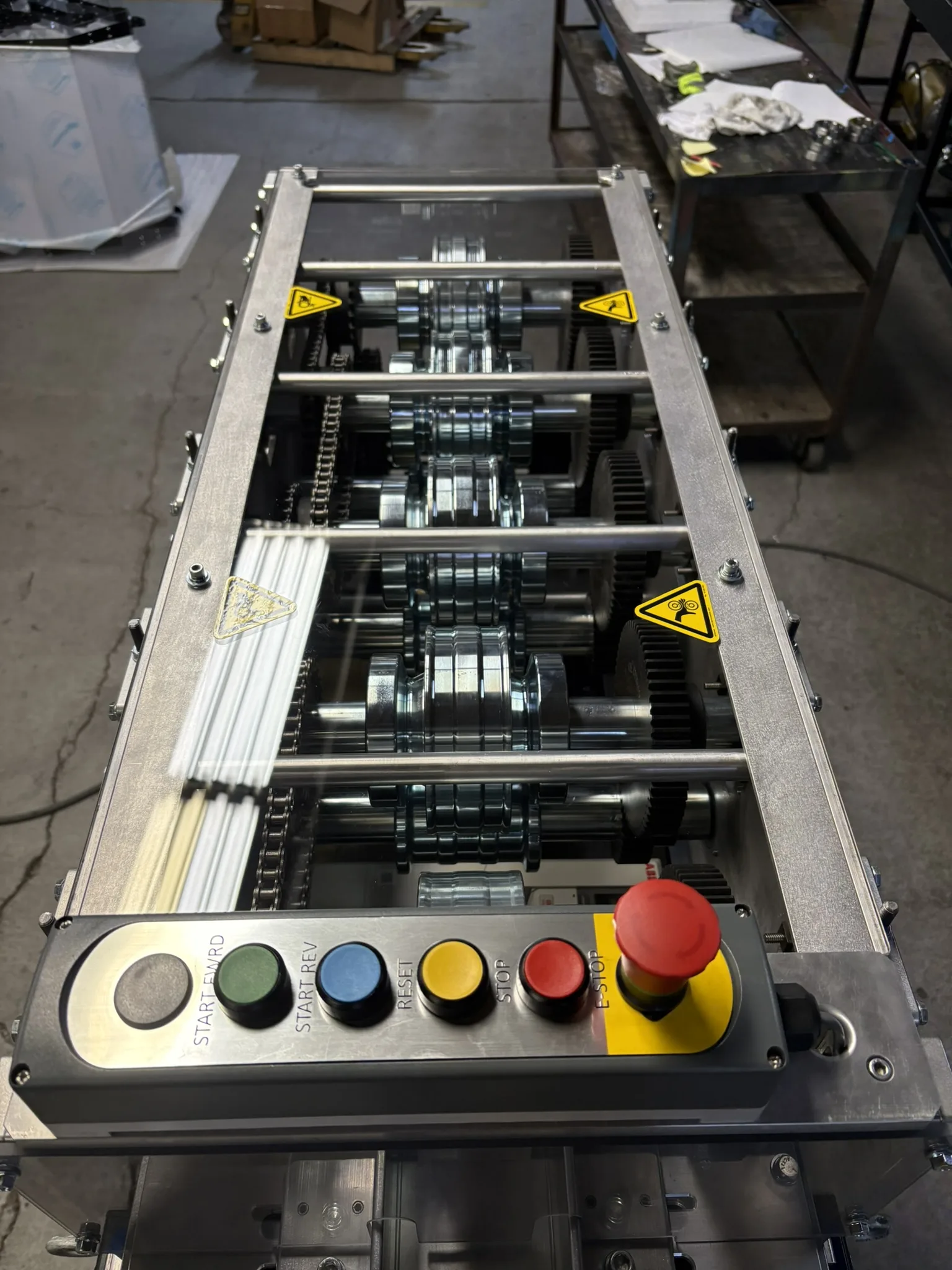

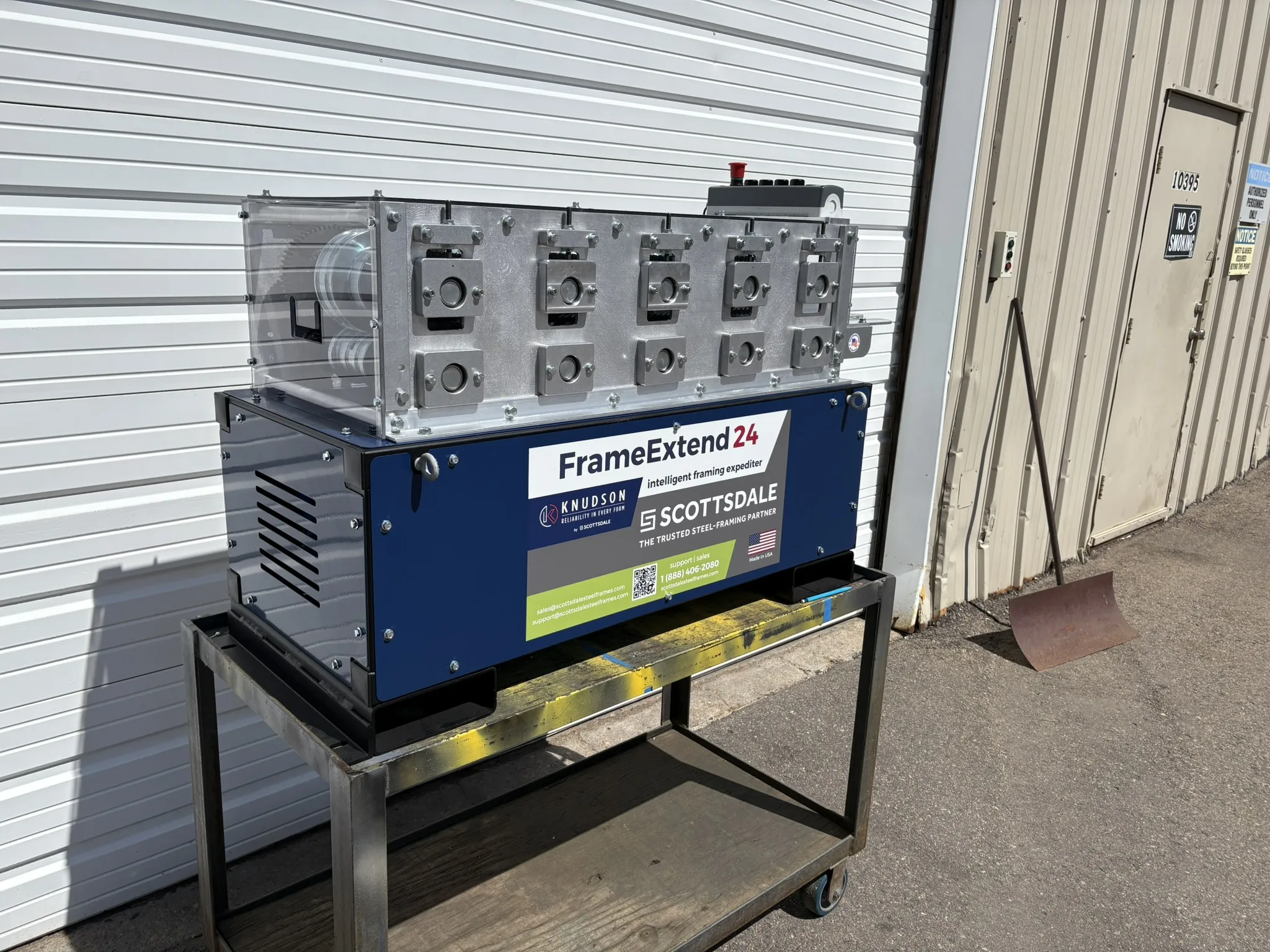

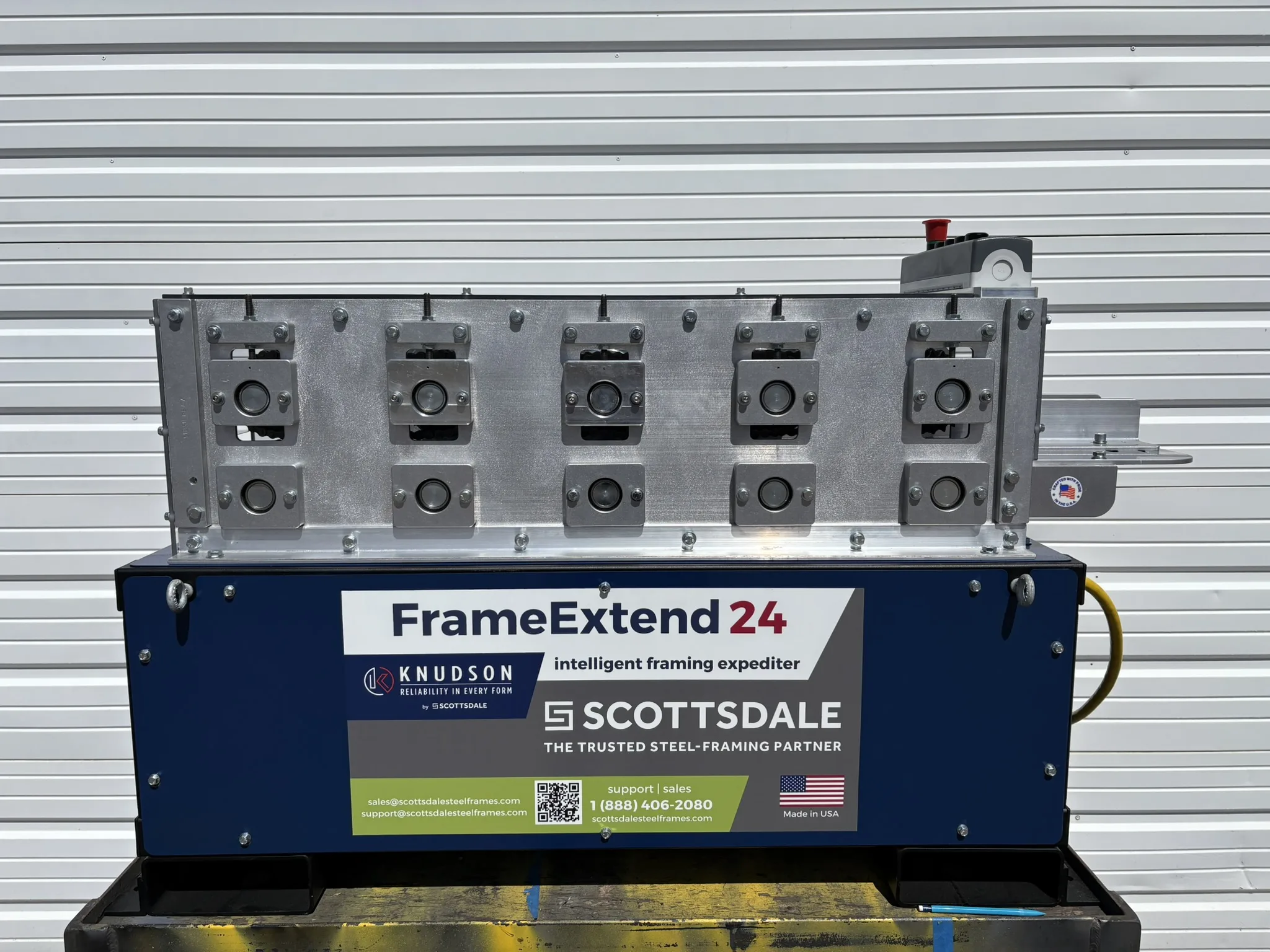

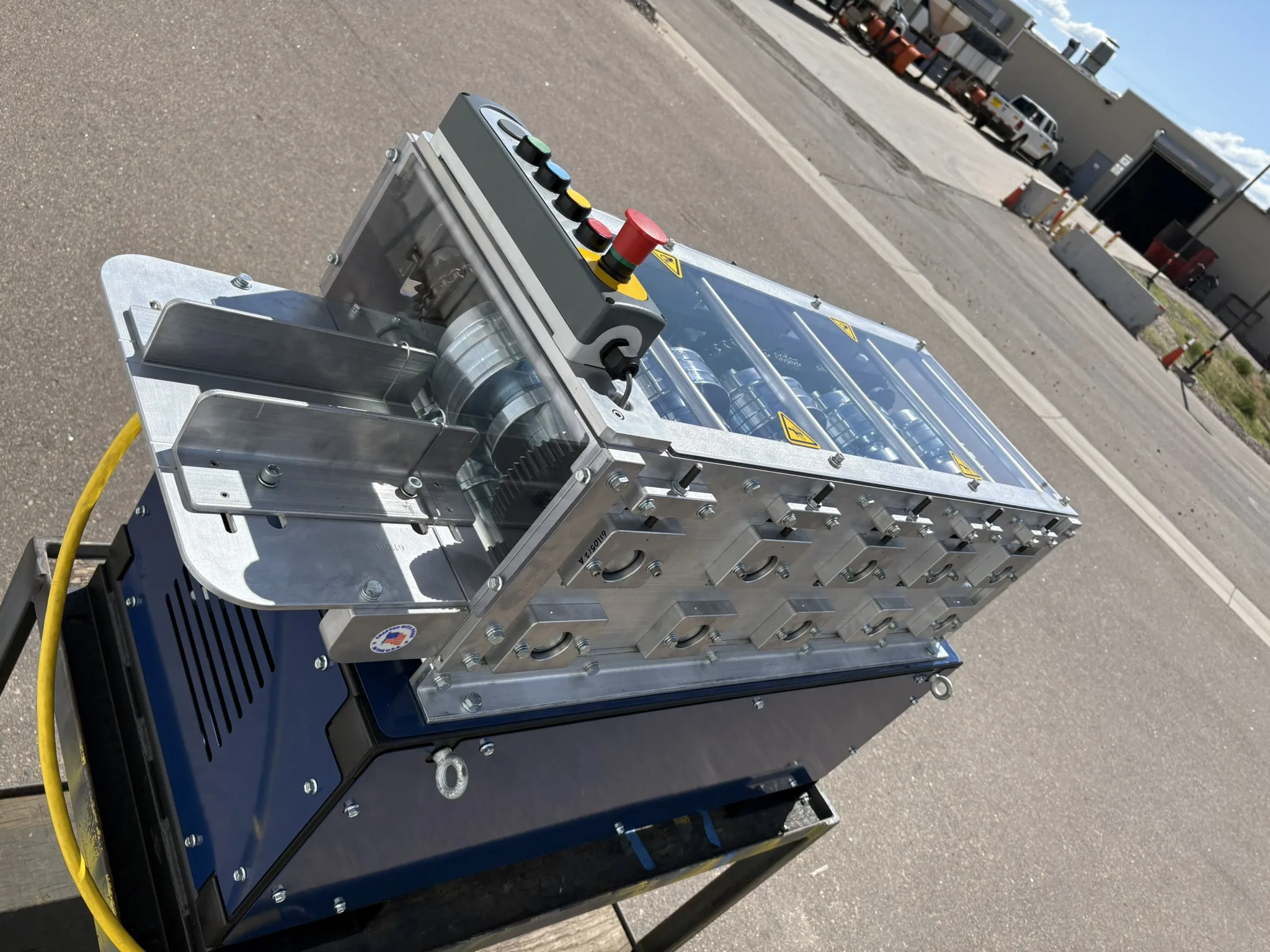

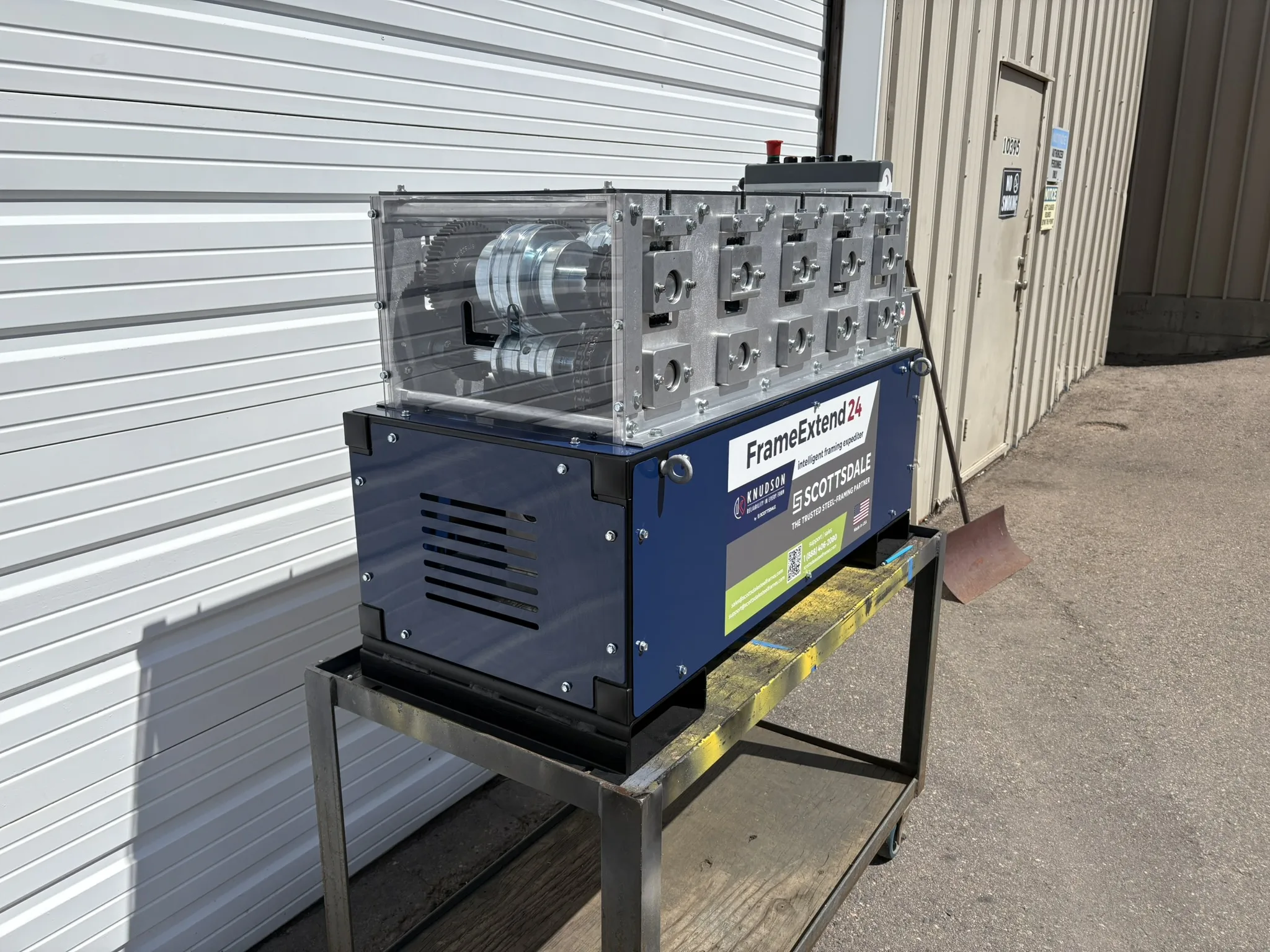

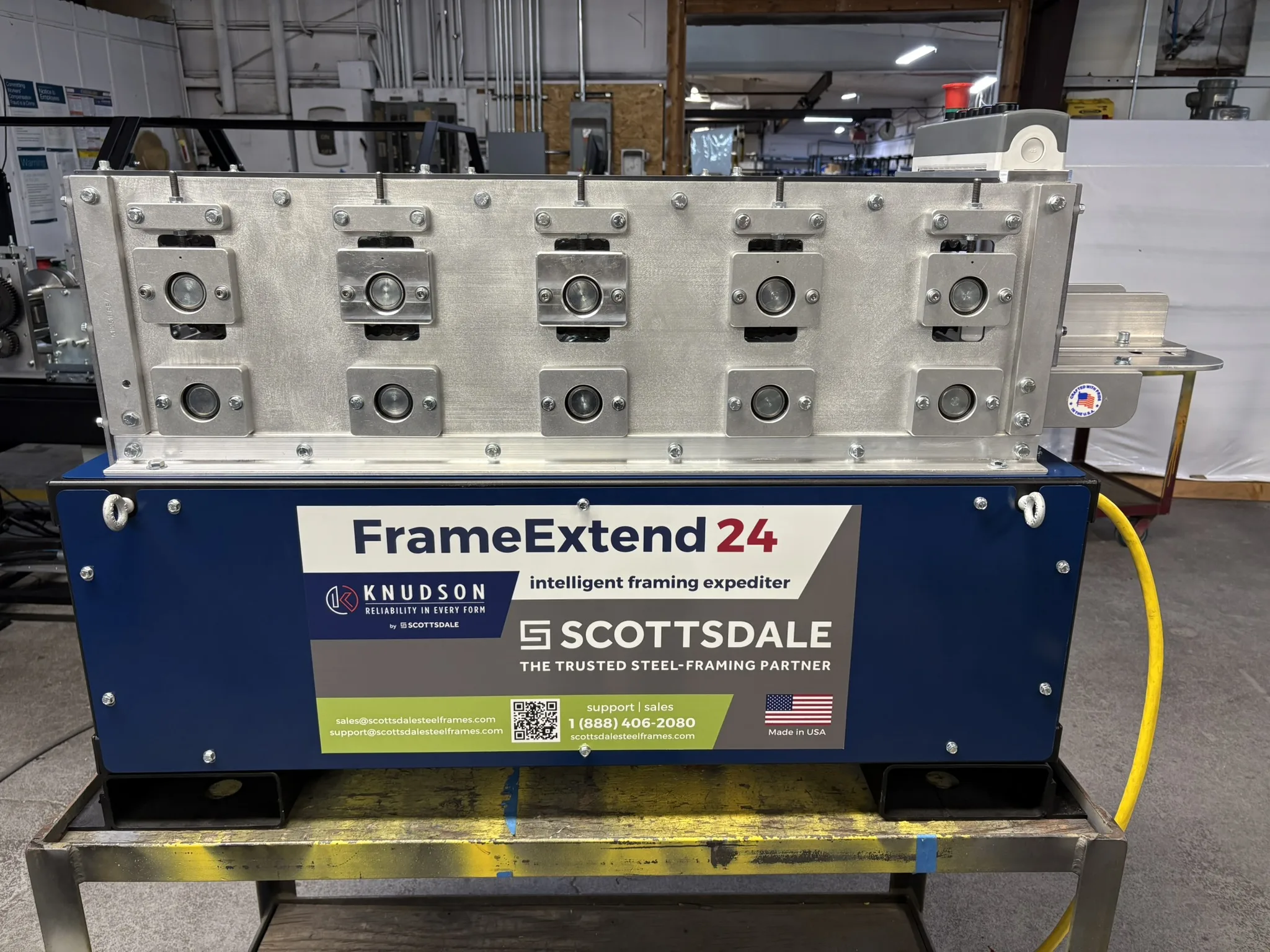

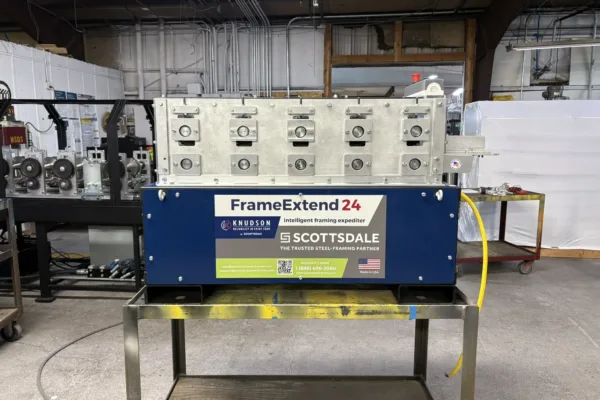

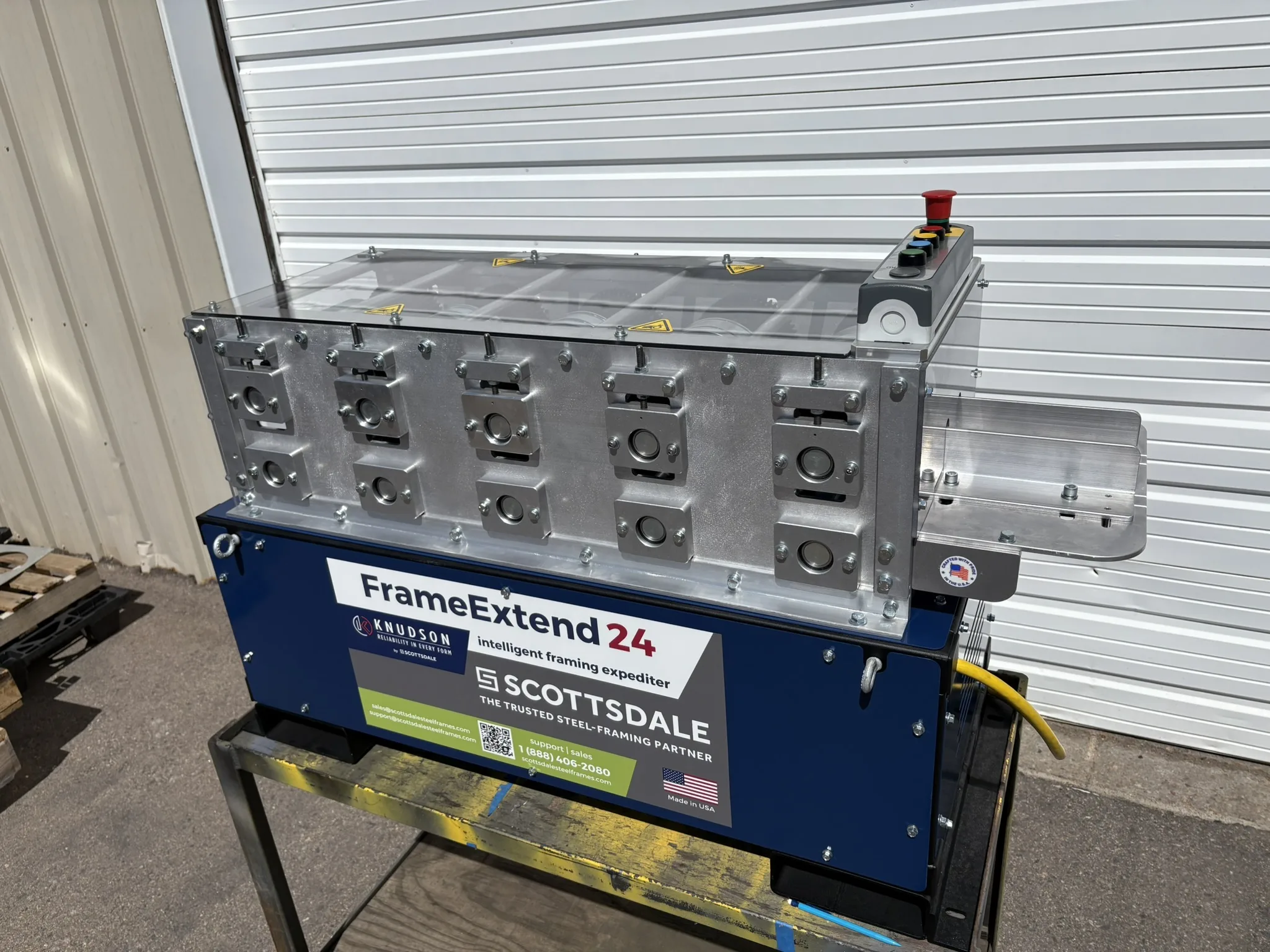

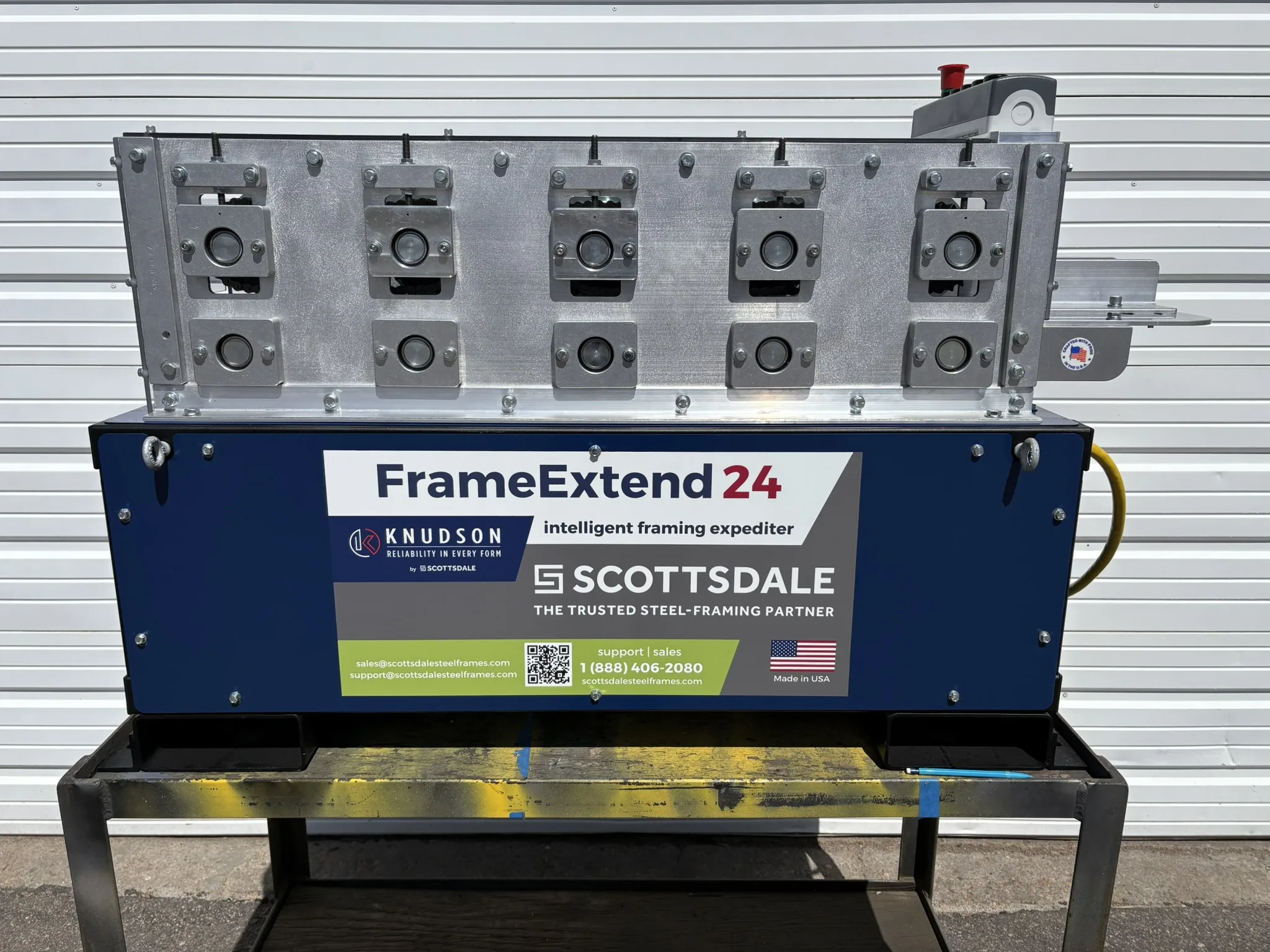

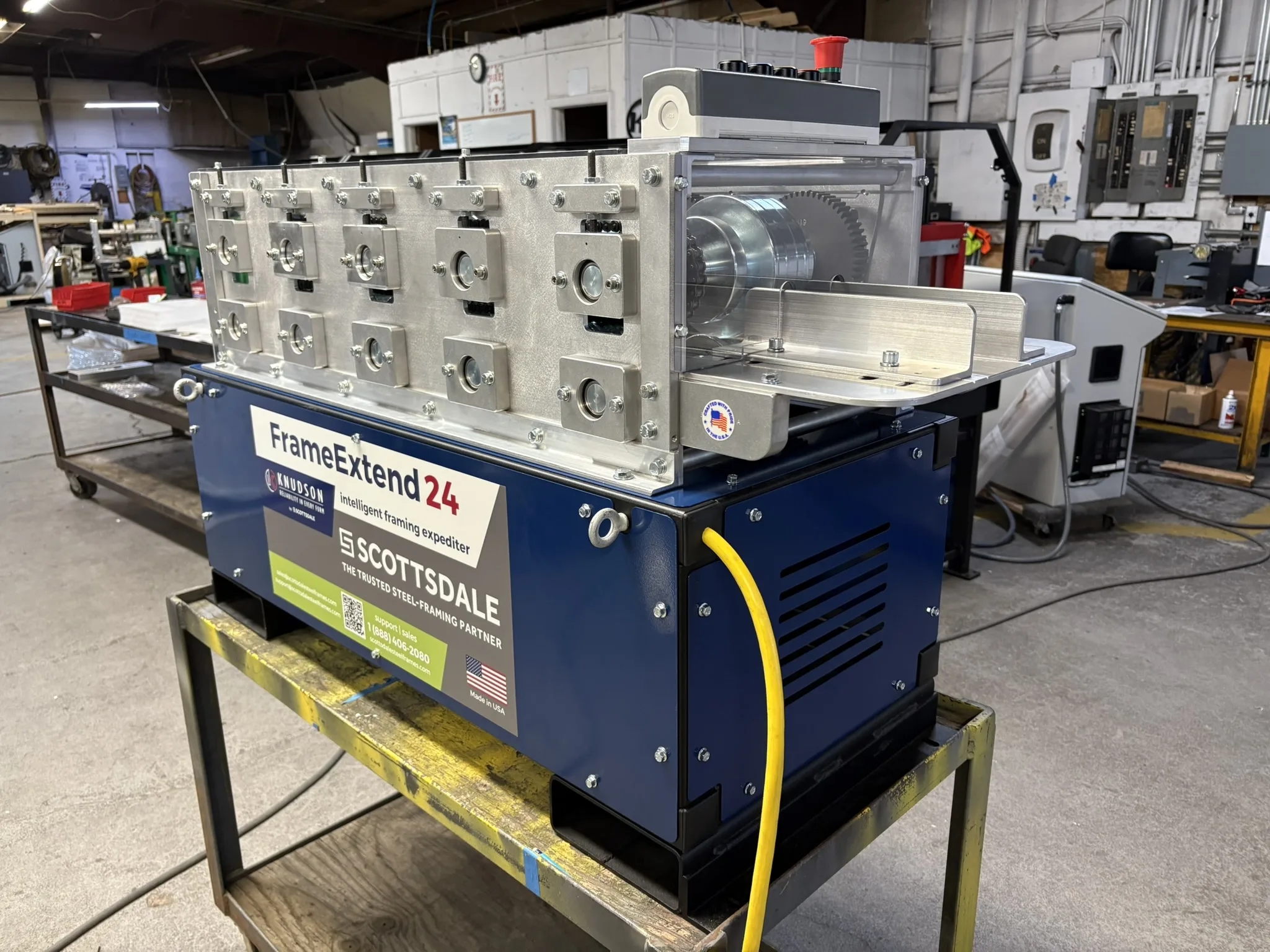

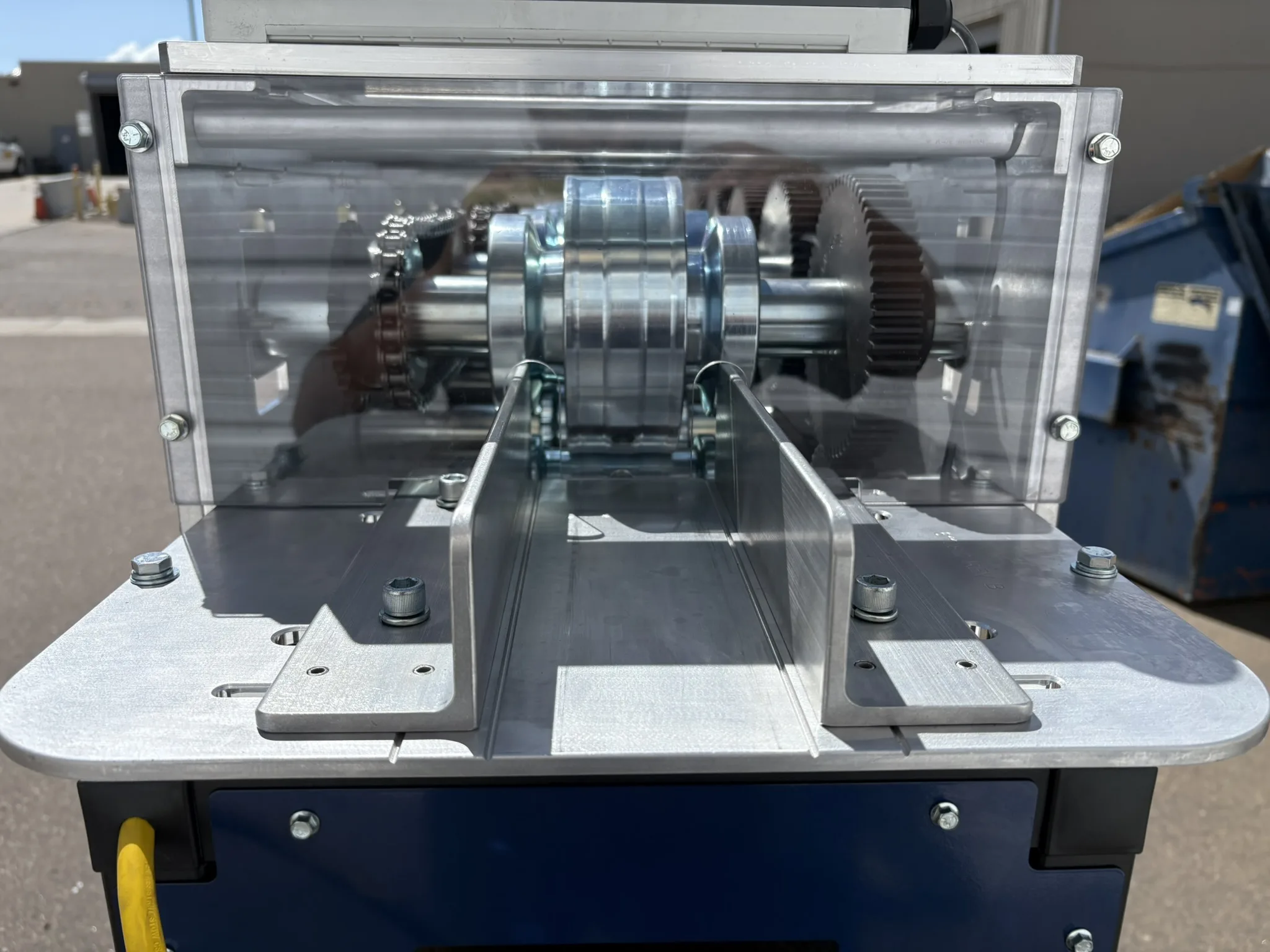

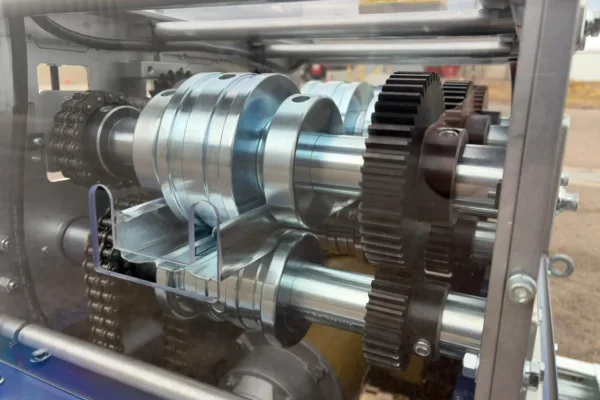

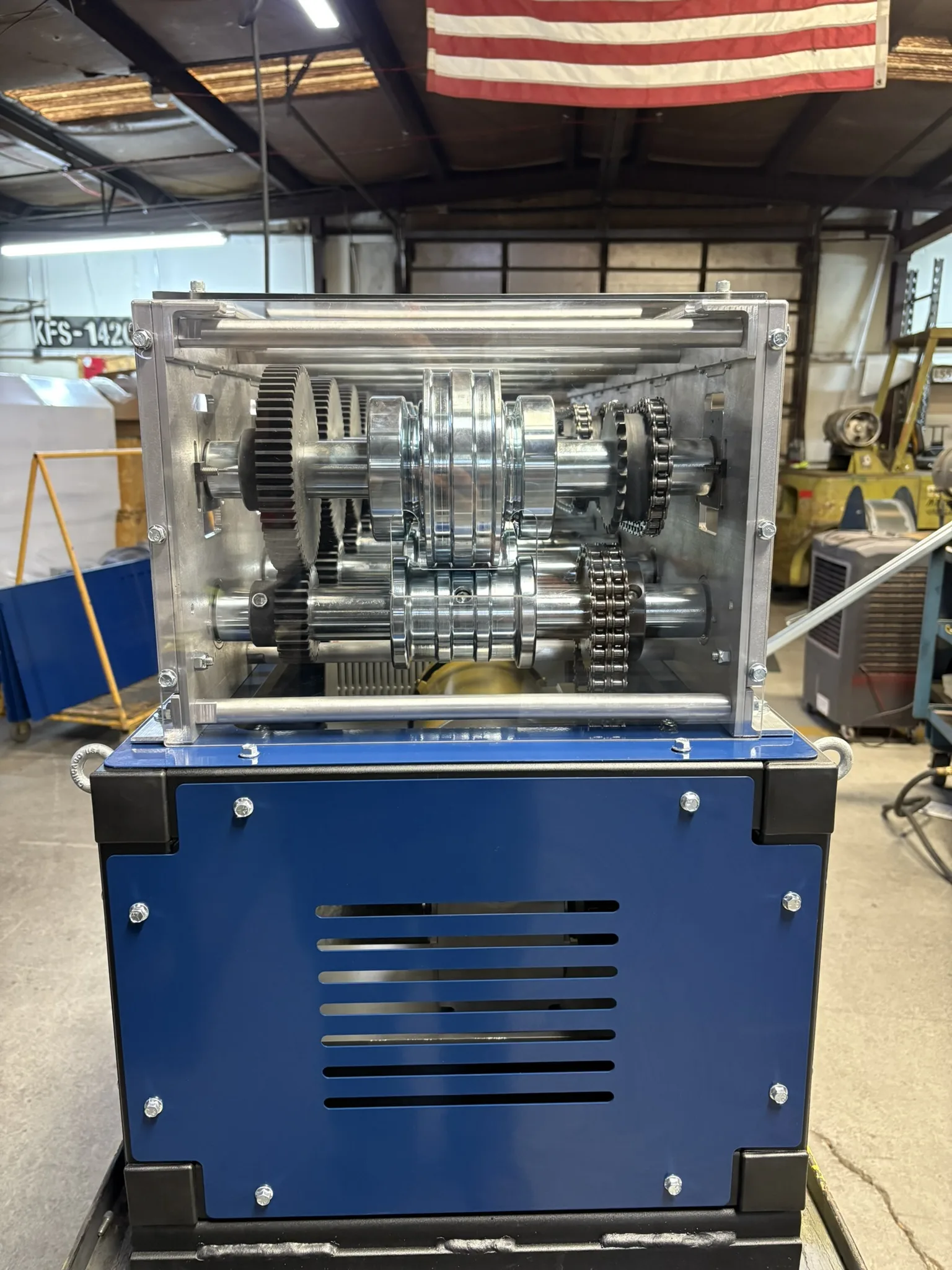

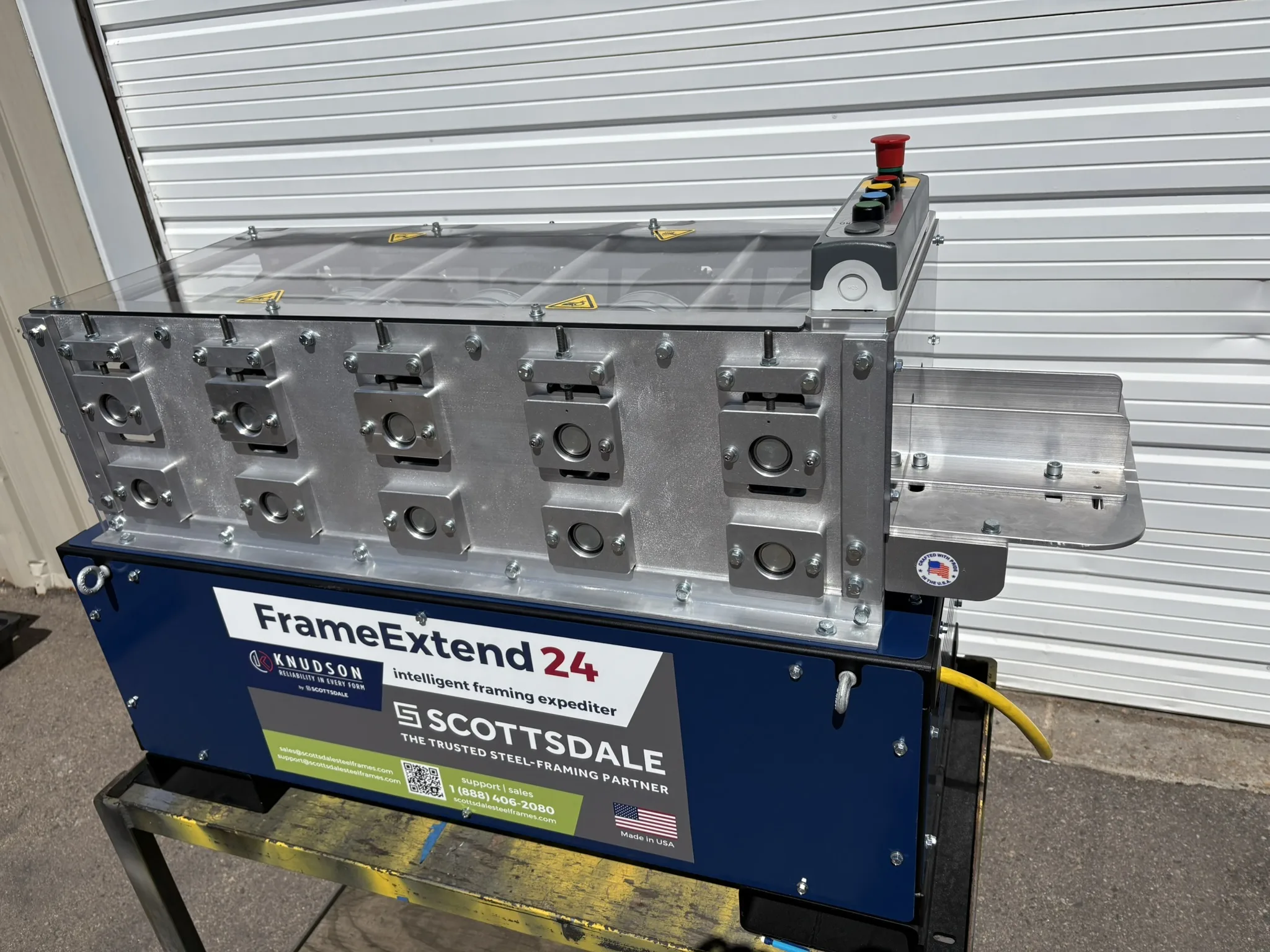

KSE FE24G1

Knudson FD Icon
Power option (choose one):

  • 460V – 60Hz – 3 Phase
  • 380V – 50Hz – 3 Phase
Scotpanel Speed Logo
1-1/2 HP Single Phase Electric Motor
  • 25:1 Gearbox

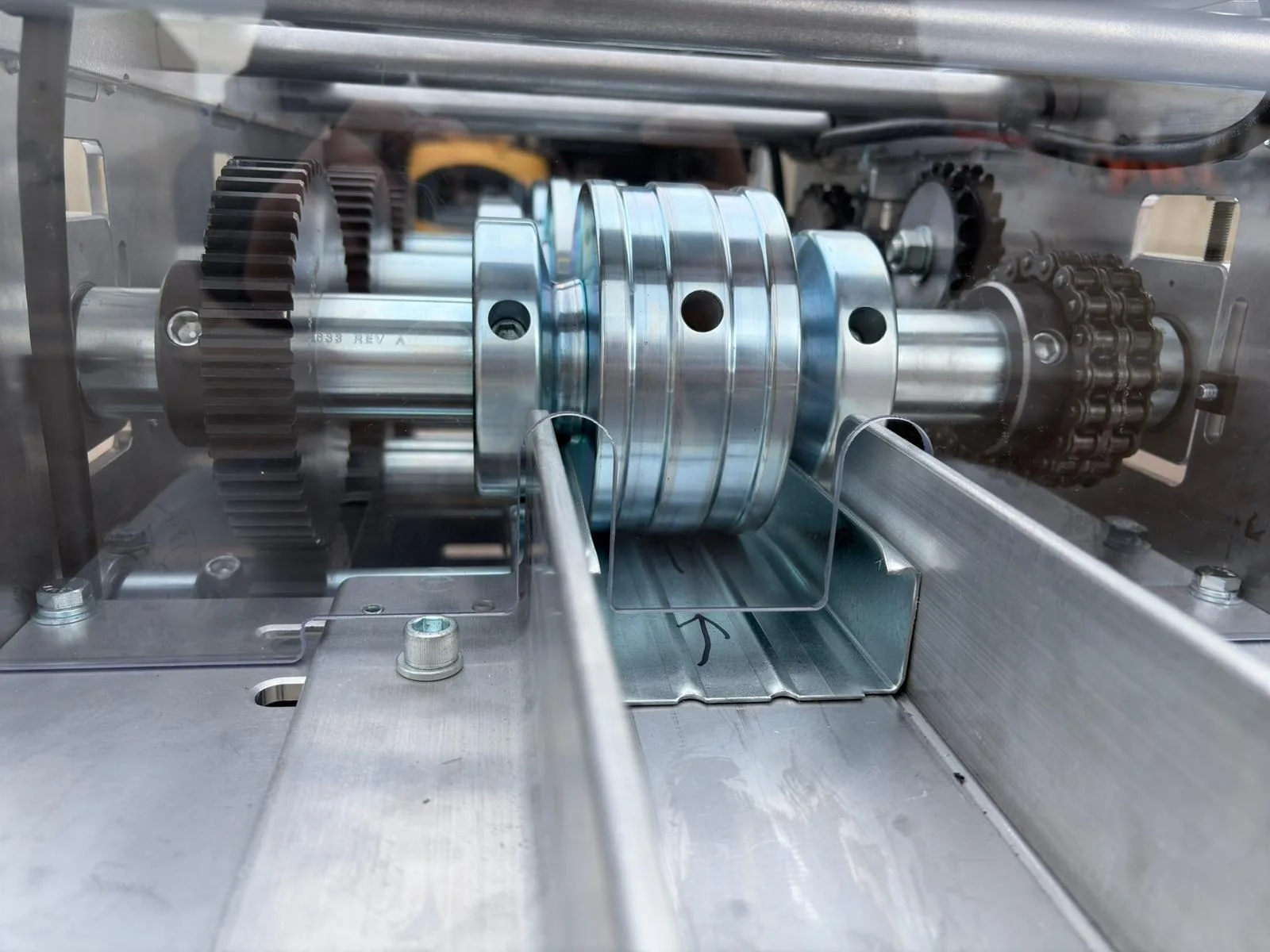

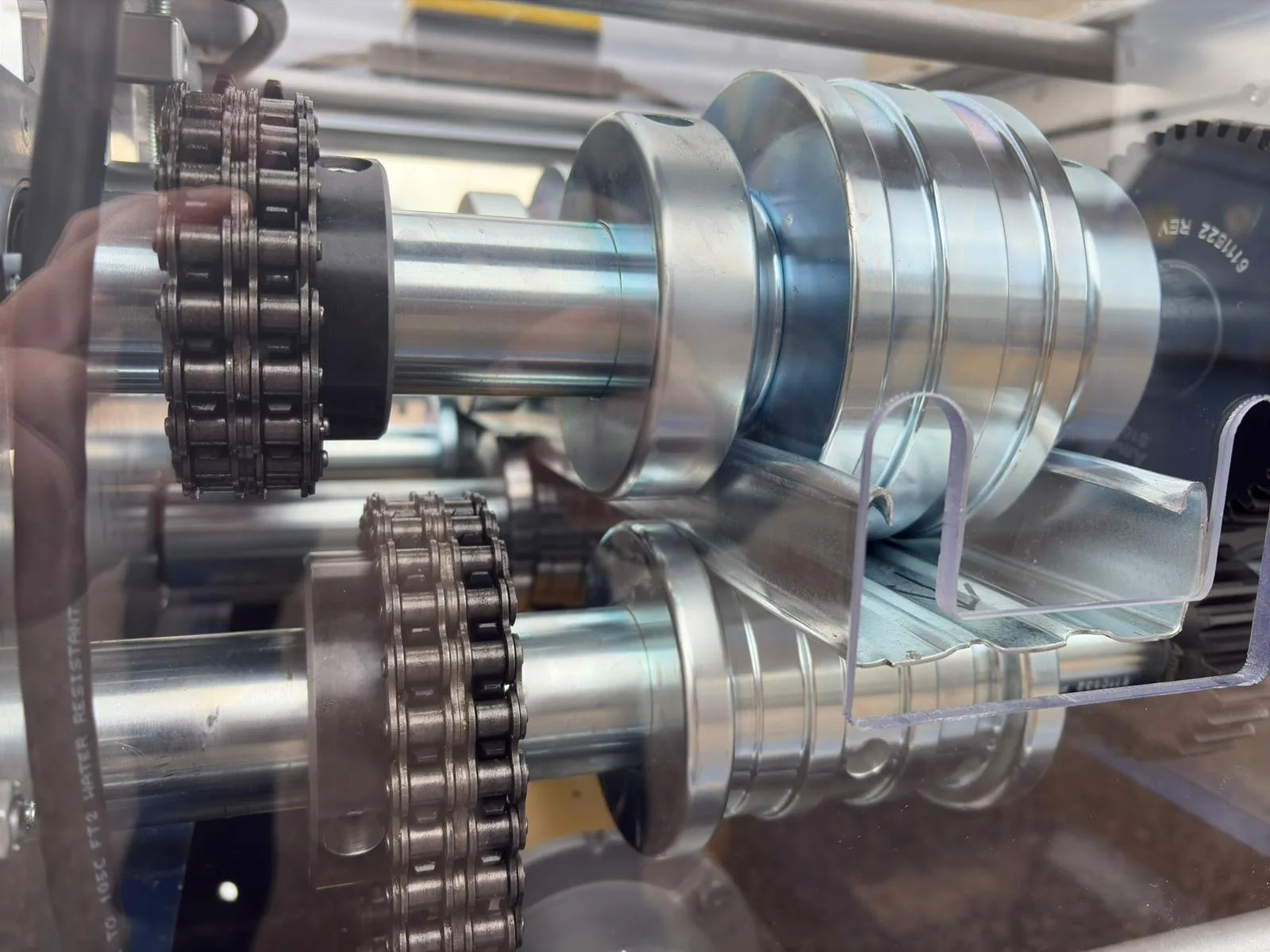

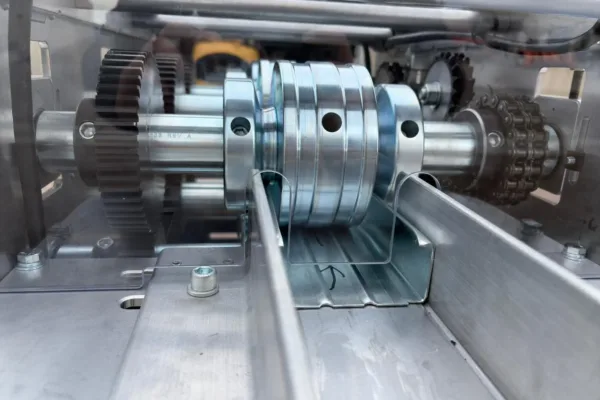

  • Three roll forming passes
  • Safety Covers
  • Optimized for Scotpanel 7090, Scotpanel 5140, or 362S163 from KFS Framemaker 1420 or 1622.
  • Up to Ga. 18 (0.043 in.) and Gr. 50 (350 MPa) material

Features

Brochures & Resources

KSE G1

Scotpanel Speed Logo
Speed: 45 feet per minute (24 Gauge)
Knudson FD Icon
18 HP Gas Engine
  • Standard Hydraulic Drive and Cutoff
  • Beck Automation COBALT Control Kit
  • Field Use Focus
  • Adds: US9 Seamer
  • Specifications:
    • 3,200 lbs
    • Dimensions: 18’L x 36″W x 41″H
    • Drive: Chain and Gear
    • Power: Gas engine/Hydraulic
    • Seven Roll Stations
    • Cutter: Straight cut hydraulic shear
    • 24 Ga to 18 Ga (maximum coated thickness .045″)
    • Coil width – 24 inches
    • Accepts steel, aluminum, copper, terne

Features

Brochures & Resources

KSE KR24 Brochures & Resources

Download 1-Inch Flush Panel Brochure
Download 1-Inch Nail Strip Brochure
Download 1.5-Inch Standing Seam Brochure
Download 2-Inch Standing Seam Brochure

KSE KR24G1

Knudson FD Icon
18 HP Gas Engine
Scotpanel Speed Logo
Speed: 70 feet per minute (24 Gauge)
  • Standard Hydraulic Drive and Cutoff
  • Beck Automation COBALT Control Kit
  • Field Use Focus
  • Choose: clip offset/ no clip offset
  • Choose: 1 1/2″ or 2″ Tooling; option to add other tooling set
  • Adds: US9 Seamer
  • 1-1/2-in and 2-in Standing Seam Roof Panel Machine
  • 1-1/2 SSR Panel – finished from 12 inch to 26 inch wide
  • 2 in SSR Panel – Finished from 11 inch to 25 inch wide
  • Specifications:
    • 6,980 lbs
    • Dimensions: 19’L x 88″W x 54″H
    • Drive: Chain and Gear
    • Power: Optional Gas or Electric
    • Nine Roll Stations
    • Cutter: Straight cut hydraulic shear
    • 26 Ga to 22 Ga (maximum .028″ steel; .032 copper and aluminum)
    • Accepts coil widths from 16 inches to 30 inches
    • Accepts steel, aluminum, copper, terne

KSE KR24G2

Knudson FD Icon
7.5 HP Electric Motor
Scotpanel Speed Logo
Speed: 70 feet per minute (24 Gauge)
  • Standard Hydraulic Drive and Cutoff
  • Beck Automation COBALT Control Kit
  • In-Plant Use Focus
  • Choose: clip offset/ no clip offset
  • Choose: 1 1/2″ or 2″ Tooling; option to add other tooling set
  • Adds: US9 Seamer
  • Power option (choose one):
    • 460V – 60Hz – 3 Phase
    • 380V – 50Hz – 3 Phase
  • 1-1/2-in and 2-in Standing Seam Roof Panel Machine
  • 1-1/2 SSR Panel – finished from 12 inch to 26 inch wide
  • 2 in SSR Panel – Finished from 11 inch to 25 inch wide
  • Specifications:
    • 6,980 lbs
    • Dimensions: 19’L x 88″W x 54″H
    • Drive: Chain and Gear
    • Power: Optional Gas or Electric
    • Nine Roll Stations
    • Cutter: Straight cut hydraulic shear
    • 26 Ga to 22 Ga (maximum .028″ steel; .032 copper and aluminum)
    • Accepts coil widths from 16 inches to 30 inches
    • Accepts steel, aluminum, copper, terne

Features

Brochures & Resources

KSE K35CG1

Warranty Icon Scottsdale
Standard tool kit
Scotpanel warranty logo
1-year warranty
  • Standard power train
  • Single-profile roll forming cassettes (interchangeable)
  • Beck Automation COBALT Control System
  • Manual roll-former adjustment
  • 3,300-lb (1,500-kg) motorized decoiler
  • Powerpack and optional cassette system
  • Nearly 20 options for custom cassettes
  • Range of thickness: 25 Ga. to 16 Ga. (0.55 mm to 1.5 mm)
  • Profile widths of up to 4.00 in. (102 mm)
  • Profile Heights of up to 2.00 in. (51 mm)

Features

Brochures & Resources

KSE US-9G1

Knudson FD Icon
1/2 hp electric drill motor
  • Four rollforming passes
  • Interchangeable roller sets
  • Height adjustable
  • Mechanical Seam Seaming Machine (Standing Seam)
  • Single and Double Lock
  • Seam heights: 1.00 to 2.50
  • Head Width: 1/2-in and 3/4-in

SOFTWARE & SUPPORT

Our machines form part of our steel fabrication system to power growth and profitability for your steel fabrication operations.

ScotSteel

DESIGN & ENGINEERING SOFTWARE

ScotRF

ROLL FORMER PRODUCTION SOFTWARE

Support Services

COMPLETE SUPPORT FOR OUR GLOBAL CUSTOMER BASE
